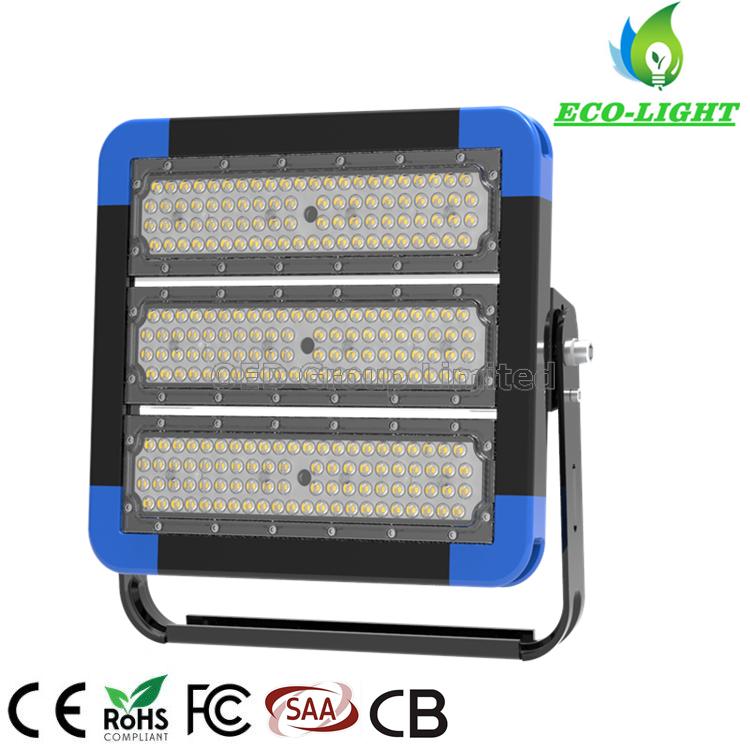

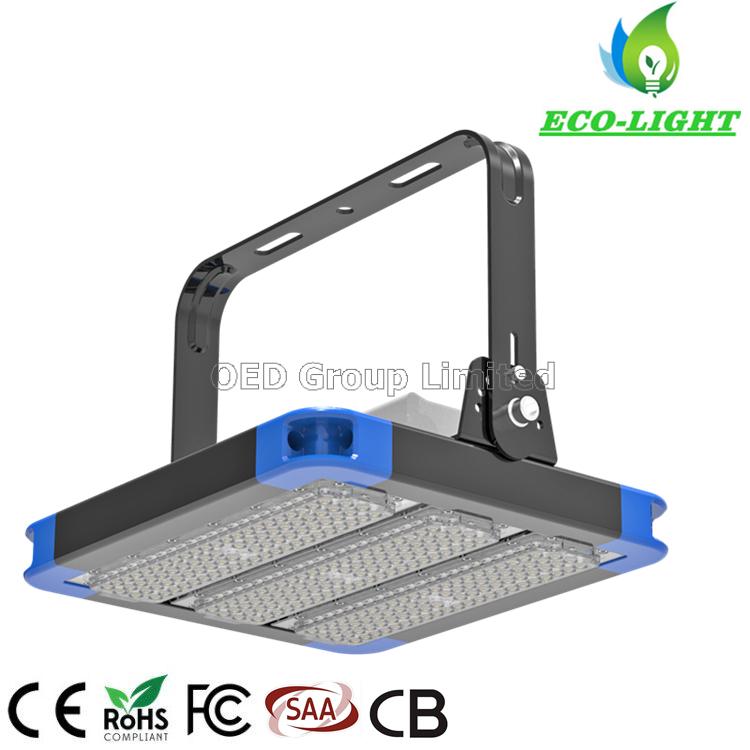

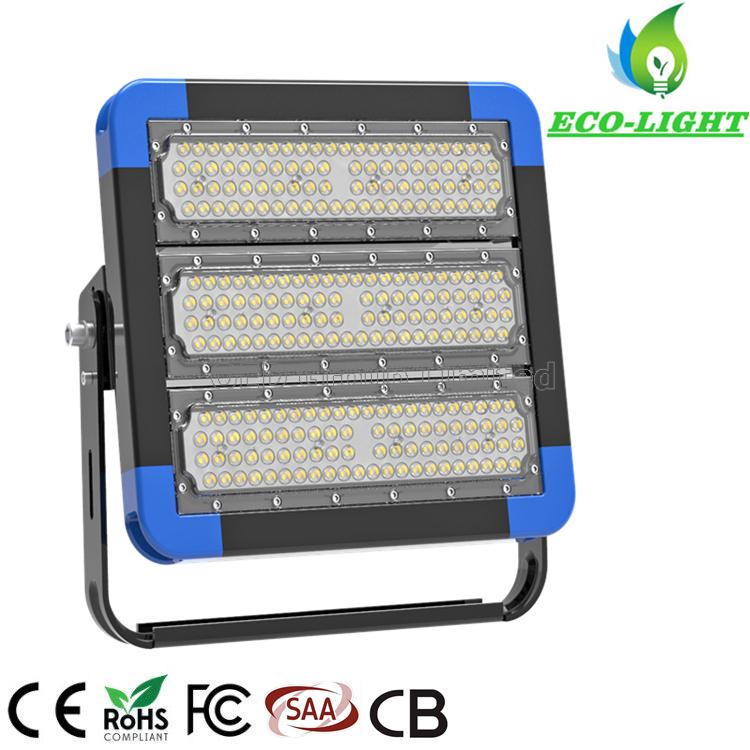

Factory direct outdoor area 150W IP66 LED flood light

  • Product Item:OED-YXY-S150
  • Category:Module LED Floodlight
  • Views:1186
  • led tunnel light 150
  • Tunnel light fixture
  • IP66 LED tunnel light
  • High power LED module
  • Product Manual:Factory direct outdoor waterproof high power 150W IP66 LED module SMD tunnel light
BASIC INFO

Factory direct outdoor waterproof high power 150W IP66 LED module SMD tunnel light


Technical Data:

Item name IP66 150w SMD module LED Tunnel light
Power 150W
Light Source Philips chip 3030 SMD LED
LED Qty 252 pcs
Viewing angle 15°  30°  45°  60°  90°
Lamp dimensions L310 x W87 x H309mm
Color Temperature 3000-3200k,4500k,6000-6500k
CRI Ra.80
Input Voltage AC100-277V / 50-60HZ
Materials 6063 Aluminum
Operating Temp. -25 - 50℃
Lifetime 50,000 hours
Warranty 5 years
Applications Outdoor lighting,Tunnel lighting,Stadium,Square,factory etc.
Item N.W. 4.5KG
Qty / CTN 1PC
Carton size / G.W. 36 x 13 x 35cm / 5KG
Certificates TUV,CE,ROHS,ETL,EMC,LVD,SAA,CB,ISO9001

Product manual:
1.Using high-quality LED as the light source, energy saving and environmental protection, compared with traditional light source, energy saving is more than 60%.
2.Long life, can be used for more than 5 years under normal circumstances.
3.The light is even and soft, and the brightness is high. The color rendering is good, the color of the real object is more realistic, and various light colors are available to meet the needs of different environments.
4.Quick start, no flicker, no noise, no radio frequency interference.
5.Using high efficiency constant current driver, wide voltage input, can work in places with unstable voltage.
6.Lightning protection, the lamp body is made of aluminum alloy material, high strength, corrosion resistance and weather resistance, good heat dissipation.
7.Green and environmentally friendly, using lead-free and mercury-free process.

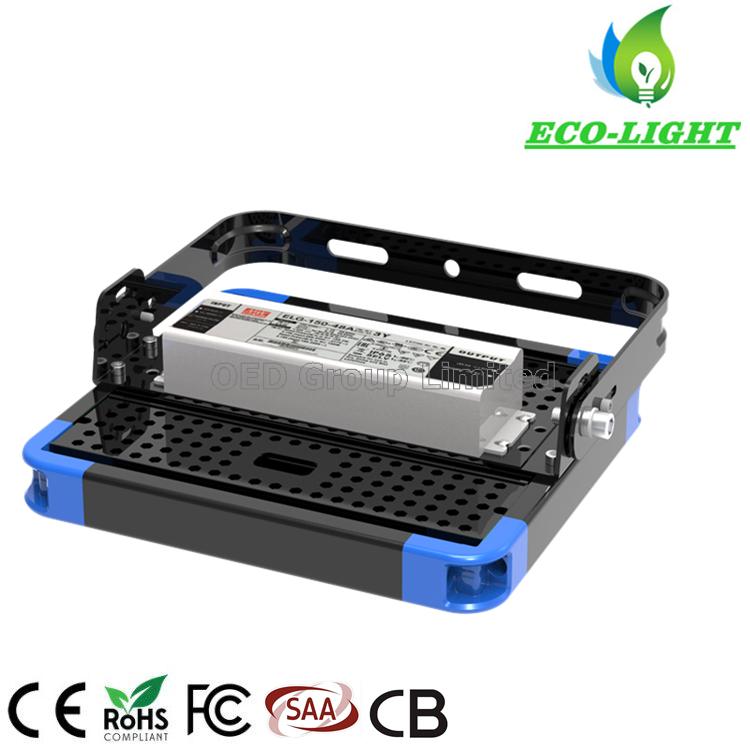

IP66 150W LED Tunnel Light Structure:
image (1).jpg

Features:
-6063 Aluminum material radiator, ADC12 aluminum material frame,work well at heat dissipation.
-Filips 3030 chips ,with excellent light effect and long life time.
-High PF drivers,PF.>0.95, Wide input voltage AC100-277V.
-IP66 protection level,dust and waterproof,to meet all kinds of outdoors harsh environment requirements.

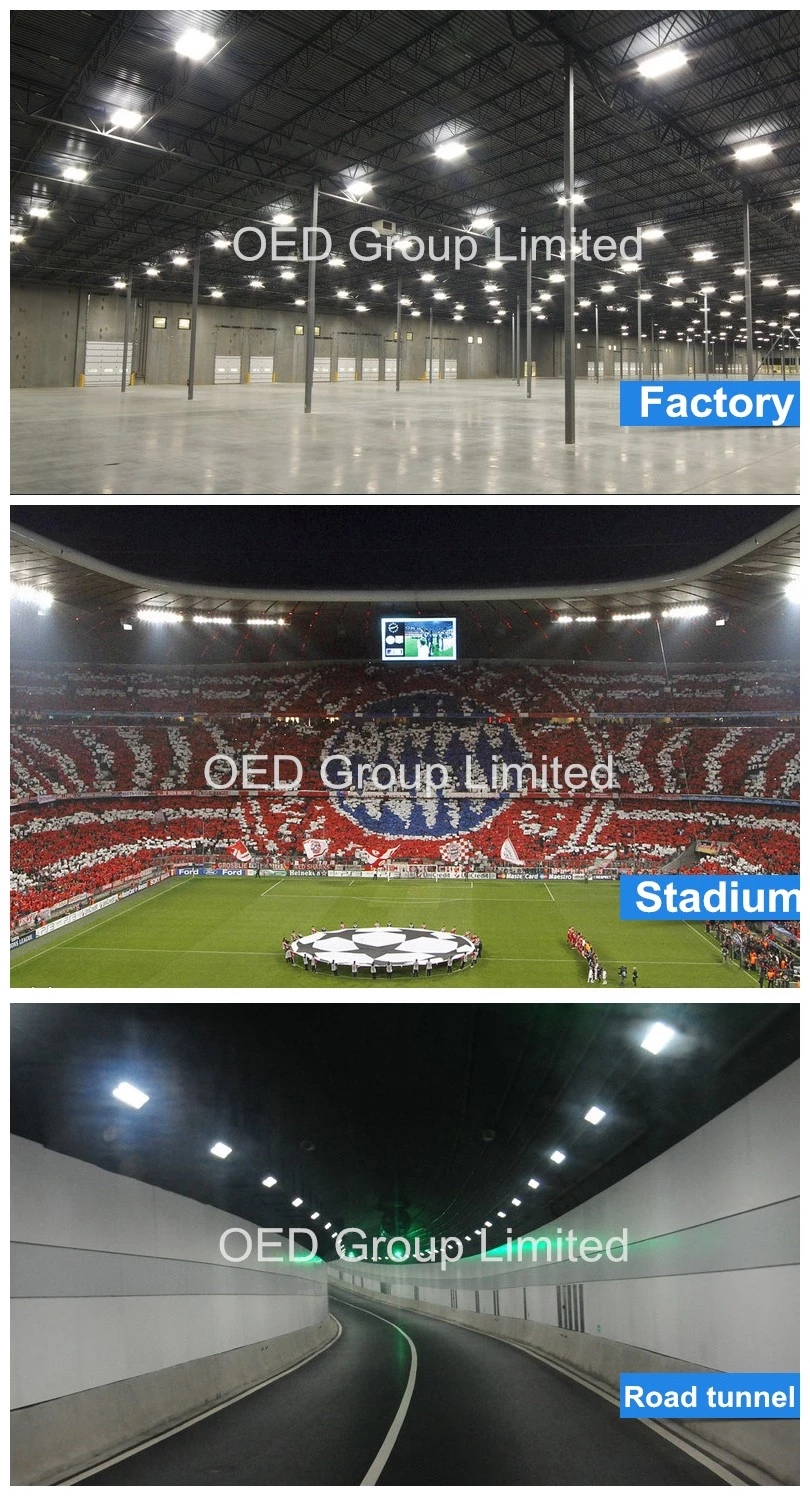

Application:
It can be widely used in Tunnels,Square,Plaza,Garden,Lawn,Playground,Tennis Stadium,Golf Course,Bus Station,Airport,Sculpture,Architecture,Arts Work,Street,Factory offices,Show Room,Work Shop,Parking Lot etc.

Installation instructions:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.


contact us OED.jpg
Our workshop:
We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 3-5 days for 500pcs LED Tunnel light, and 10-15 working days for 3000pcs LED Tunnel  Light at common requirements.


Packing & Aging test:
Each Lamp must pass 24 hours aging test and high voltage (2KV, 4KV, 6KV) surge test before we make packing and make delivery.

image (4).jpg

OED Lighting show:

image (5).jpg

Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.
Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.
Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
3000pcs in 15 working days.
About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs led tunnel lights.
4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this led tunnel lights, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
