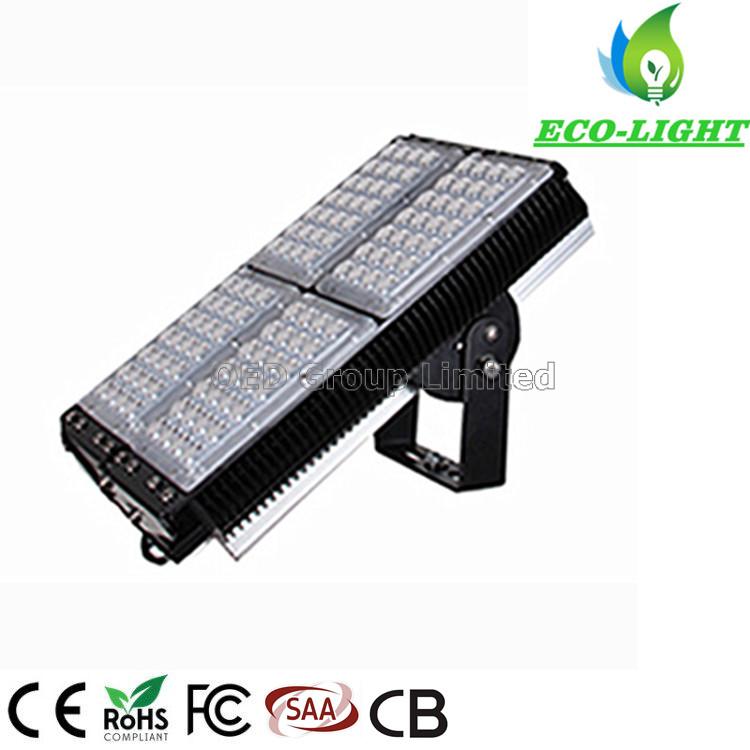

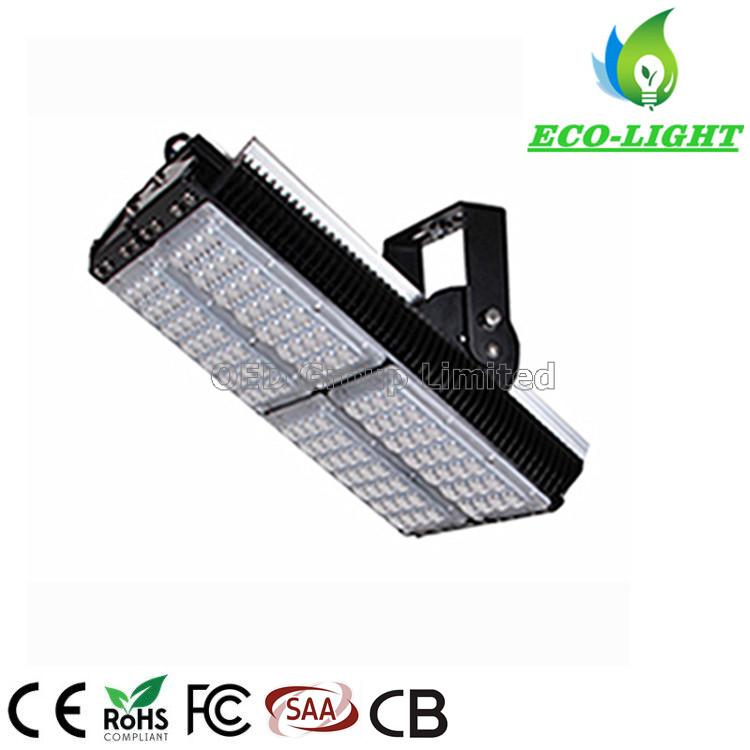

LED high pole light 200w module SMD floodlight with 60 degree 90 degree Beam Angle

Product Item：OED-ZL-FM200
Category：Module LED Floodlight
Views：1082
200W LED floodlight
LED SMD floodlight 200W
SMD LED flood light 200W
200w smd led flood light
Product Manual：LED high pole light 200w module SMD floodlight with 60 degree 90 degree Beam Angle

BASIC INFO

Technical data:

Item name	200W SMD LED module flood light
Power	200W
Light Source	Lumileds 3030
LED Qty	216pcs
LED Driver	MEANWELL Driver
Input Voltage	AC 85~305V 50/60Hz
Color Temperature	2700-6500K
Light effect	130LM/W
Lumen	26,000LM
PF	≥0.95
CRI	Ra.≥80
IP	65
Viewing angle	60° 90°
Materials	Aluminum + PC optical lens
Operating Temp.	-40ºC to +60ºC
Applications	Tunnel,highways, subways,workshops, warehouses, etc.
Qty / CTN	1PC
N.W.	4.6KG
G.W.	5.1KG
Lamp dimensions	L358 × W223 × H229mm
Carton size	46 × 32 × 21 cm
Lifetime	50,000 hours
Quality warranty	5 years
Certificates	CE,ROHS, EMC, LVD, ISO9001

Features:
1.High efficiency MEANWELL waterproof Driver.
2.Imported original Lumileds or Filips LED Chip.
3.Aluminum lamp housing with cooling fins,excellent structure for heat dissipation.
4.The surface of lamp housing is anti-corrosion and electrophoresis processed,can be used at seaside.
5.Dust-proof,moisture proof and waterproof, IP65 rated.
6.Excellent optics design,higher luminous efficiency.
7.Compare to traditional lamps can save energy 60%-70%.
8. 5 years warranty.

200W LED module Flood Light details:

Application:
Widely used in highways, subways, railways, tunnels and other underground passages lighting, workshops, warehouses, venues and various types of factories, construction and other places, can also be used for urban landscapes, billboards, buildings and other night lighting.

Light distribution curve and installation:

image (1).jpg

Installation instructions:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.

Our workshop:
We have 6 production lines at production department, including assembling, inspection and aging test lines.

Production ability: 3-5 days for 500pcs LED Floodlight, and 10-15 working days for 3000pcs LED Flood light at common requirements.

Each Lamp must pass 24 hours aging test and high voltage (6KV) surge test before we make packing and make delivery.

flood light application.jpg

Our Services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3. 5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material, Osram, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.
Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
3000pcs in 15 working days.
About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs led flood light.
4. What about your after-sales servie and warranty policy?
We offer 5 years warranty for this led Flood light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
