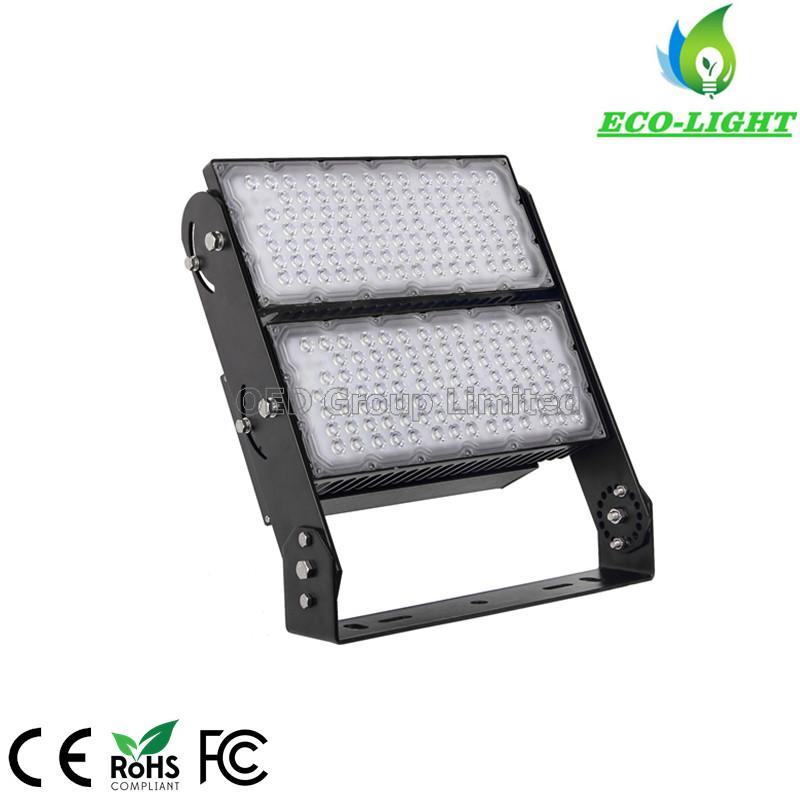

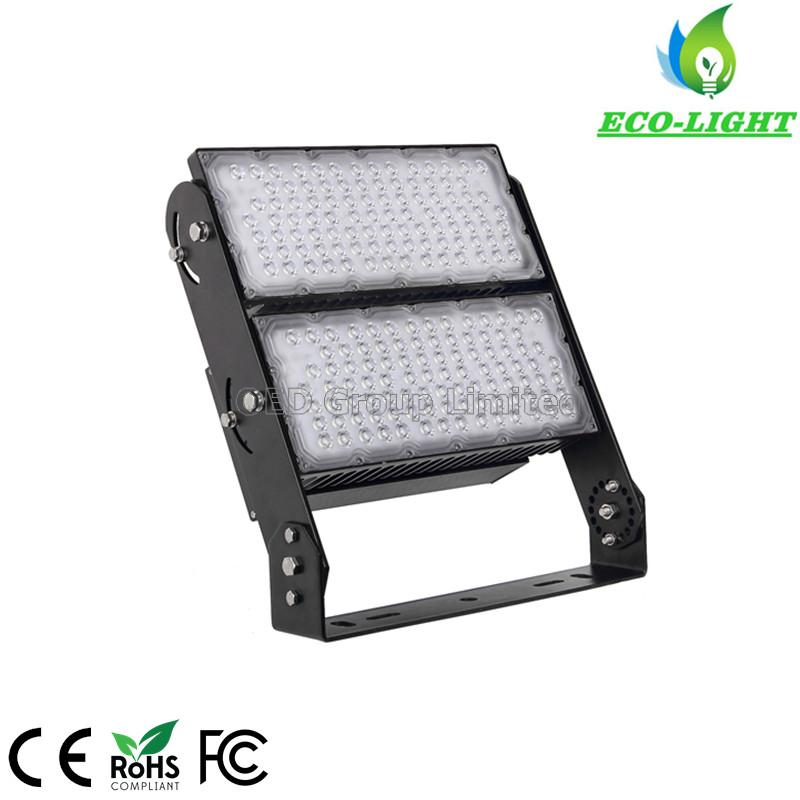

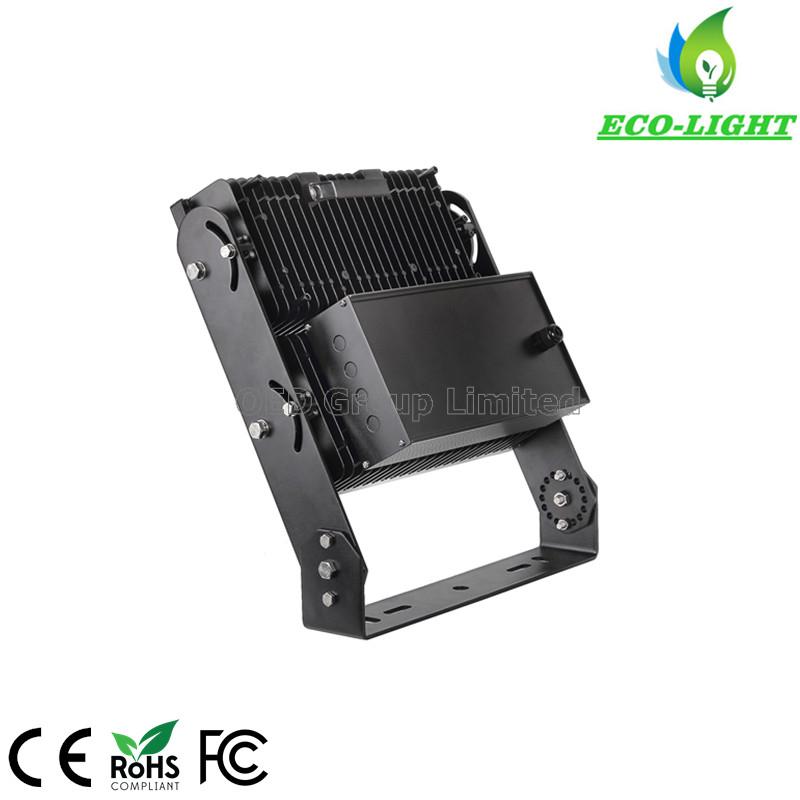

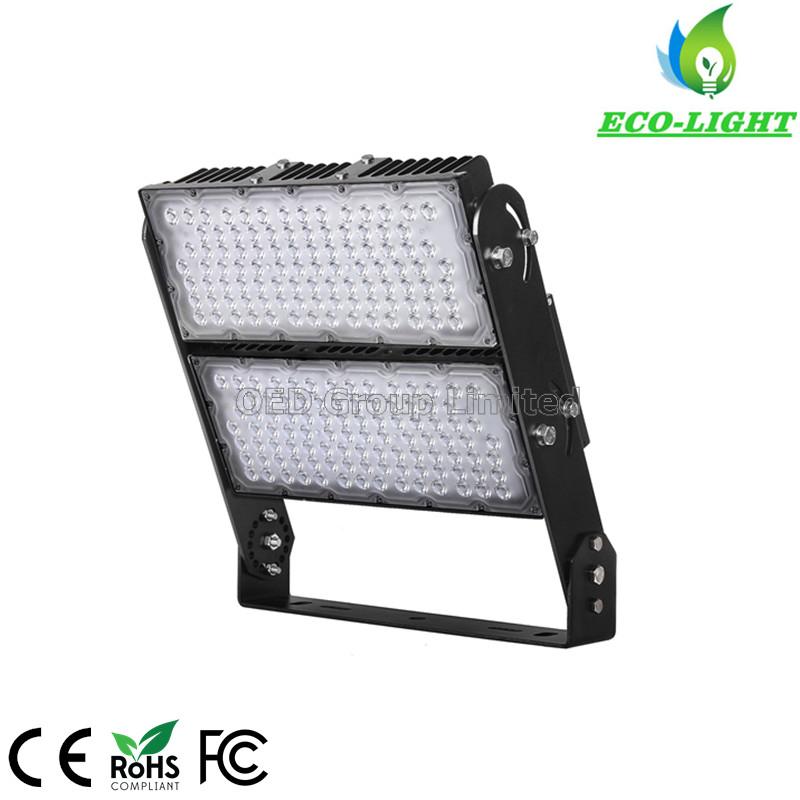

IP66 500W sports field luminare 5050SMD high mast flood light

Product Item：OED-SP3-500W
Category：High power high mast light
Views：949
Watts:500W
Efficiency: 160LM/W
Driver: MW or Inventronics
Warranty: 5 years
Product Manual：IP66 500W LED SMD5050 module flood light for outdoor area sports field lighting 160lm/w with 5 years warranty

BASIC INFO

Technical Data

Item name	Outdoor area 500W LED stadium flood light
Power	500 Watts

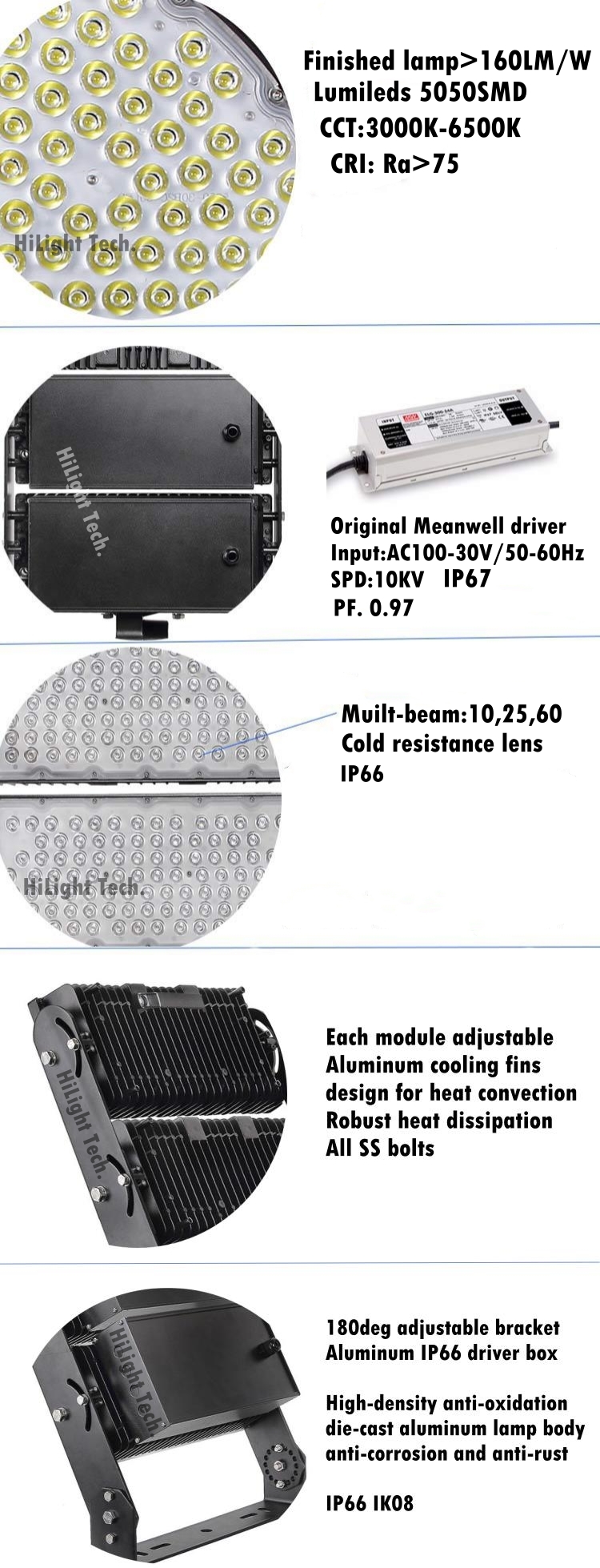

Light Source	Lumileds SMD5050
LED Quantity	196 pcs
LED Driver	MEANWELL driver
Input Voltage	AC 85~305V 50/60Hz
Color Temperature	2700K-6500K
Lighting efficiency	160LM/W
Lumens	80,000LM
CRI	Ra.≥75
Power Factor	> 0.95
Defend grade	IP66
Viewing angle	10° 20° 60° 90x120°
Materials	ADC12 aluminum & optical lens
Operating Temp.	-40ºC ~ +60ºC

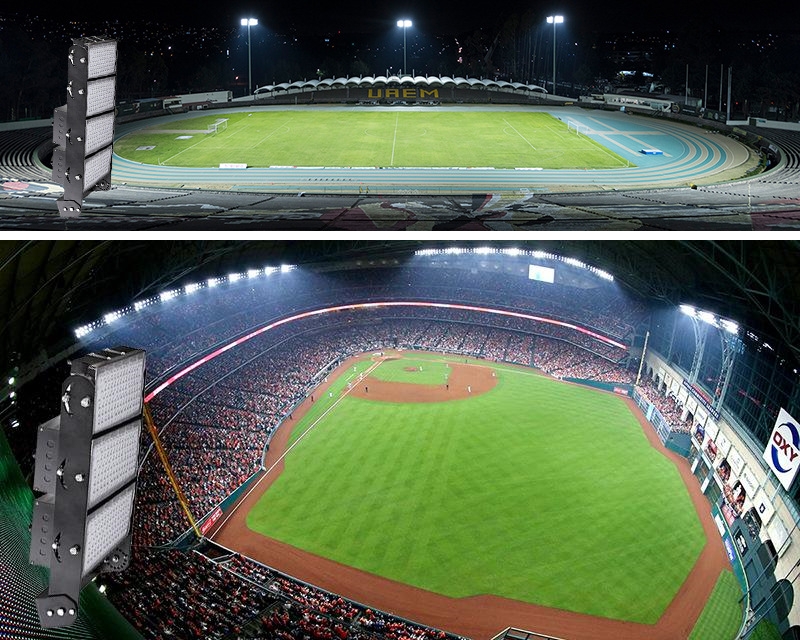

Applications	Stadium,airport, park,bridge, square, workshop,etc.
Qty / CTN	1PC
N.W.	14.5KG / PC
G.W.	16.0KG / PC
Lamp dimensions	495 x 420 x 155mm
Carton size	64 x 51 x 25cm
Lifetime	50,000 hours
Quality warranty	5 years
Certificates	CE,ROHS, EMC, LVD, ISO9001
