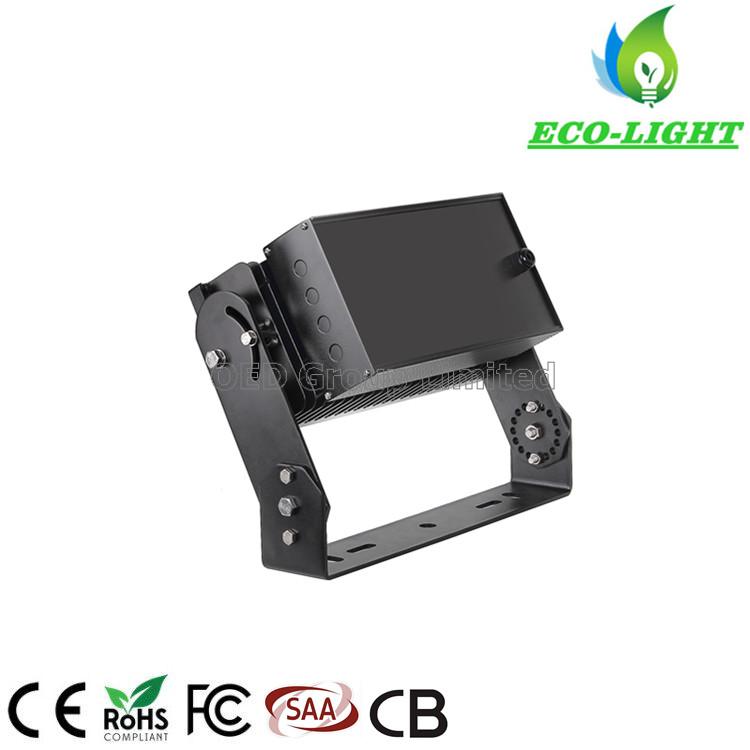

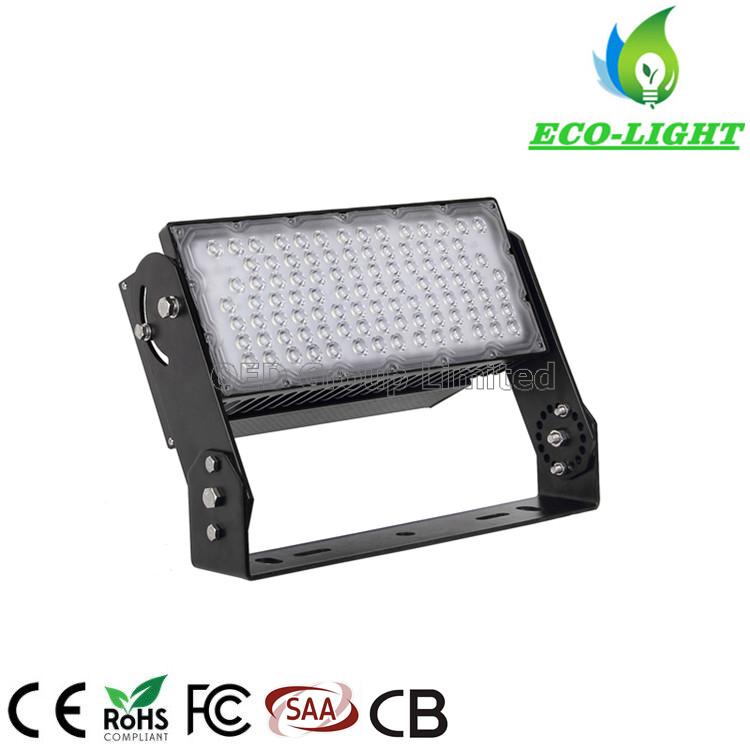

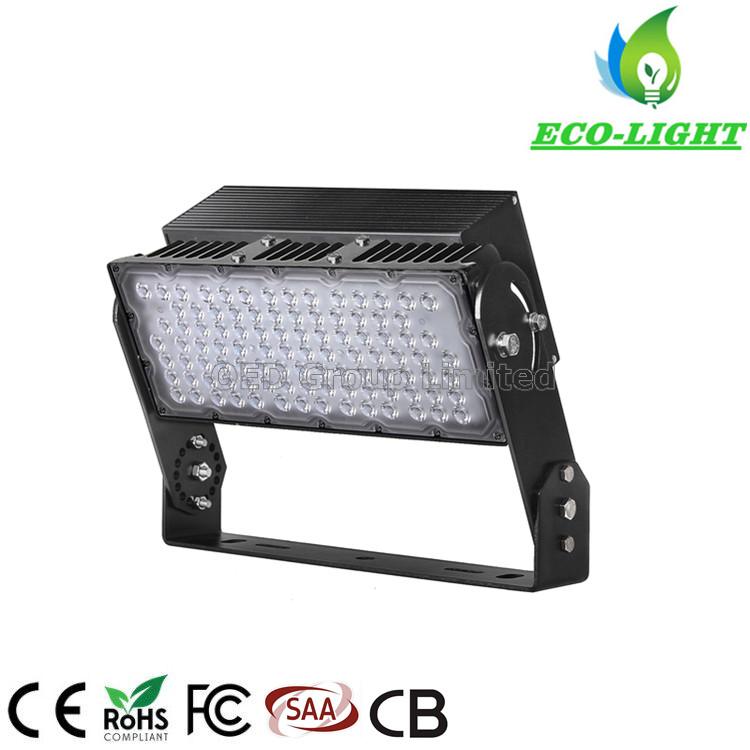

250W LED high bay flood lamp for outdoor tennis court lighting

  • Product Item:OED-SP3-250W
  • Category:High power high mast light
  • Views:1034
  • Watts: 250W
  • Efficiency: 160LM/W
  • PF>0.95
  • Warranty: 5 years
  • Product Manual:250w LED high mast flood lamp for outdoor tennis court lighting
BASIC INFO

Technical Data

Item name
250W LED tennis court flood stadium lamp
Power
250W
Light Source
Lumileds SMD5050
LED Quantity
98pcs
LED Driver
MEANWELL Driver
Input Voltage
AC 85~305V 50/60Hz
Color Temperature
2700-6500K
Light effect
160LM/W
Lumen
40,000LM
CRI
Ra.≥80
Power Factor
> 0.95
Defend grade
IP66
Viewing angle
10°   25°   60°  90x120°
Materials
ADC12 Aluminum & optical PC lens
Operating Temp.
-40ºC ~ +60ºC
Applications
Ski resort,park,stadium,square,seaport,building etc.
Qty / CTN
1PC
N.W.
9.2KG/PC
G.W.
10.2KG / PC
Lamp dimensions
315 x 420 x 155mm
Carton size
46 x 51 x 25cm
Lifetime
50,000 hours
Quality warranty
5 years
Certificates
CE,ROHS, EMC, LVD, ISO9001

Product Features

200W/300W/400W/500W/600W/700W/900W/1000W/1200W available.
* Professional lighting effect and more suitable for stadium.
* IP66 waterproof design for outdoor use.

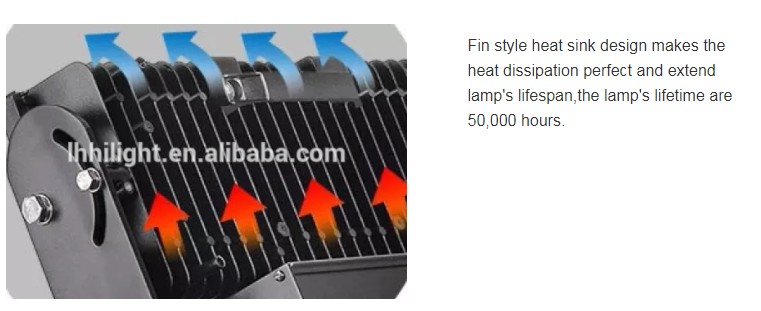

* Die-casting aluminum with fins, robust heat dissipation.
* Supply dialux lighting solutions for your case.
* Original Meanwell driver or Inventronics driver.

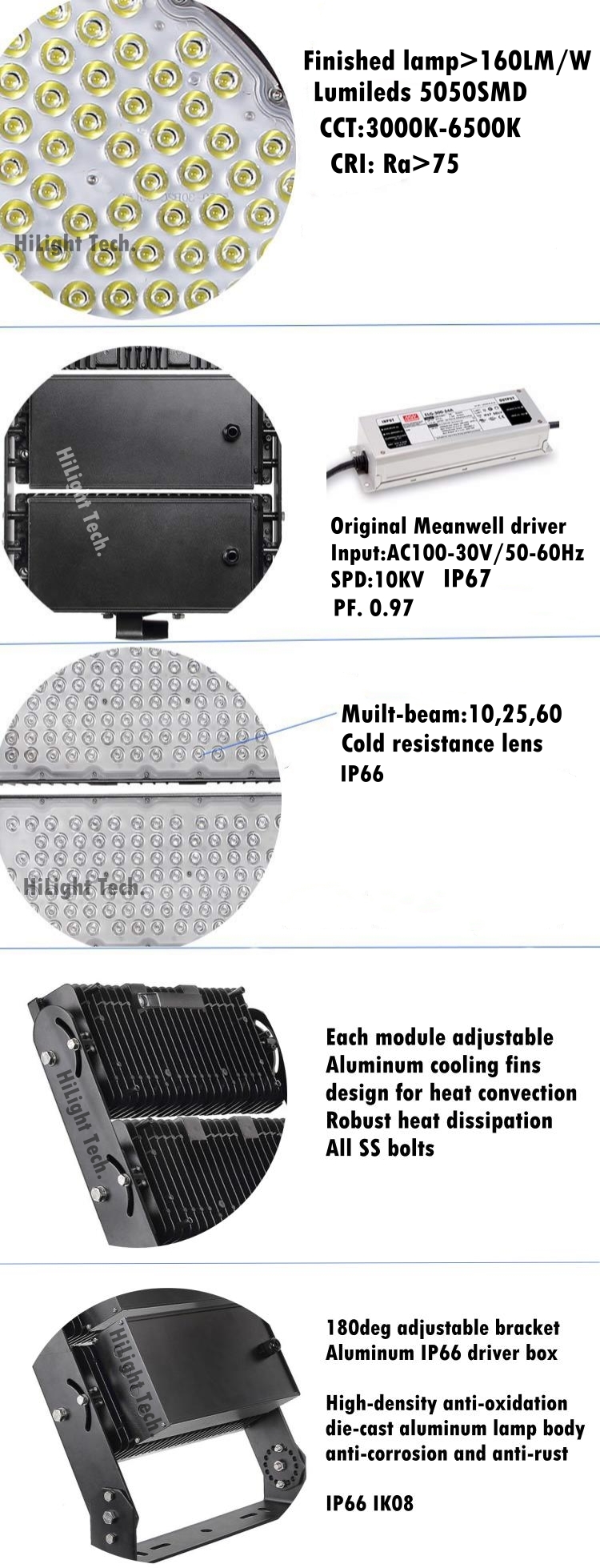

* Lumileds 5050SMD LED,output 160LM/W real test for finished lamp.
* 5 years warranty for each lamp.
* 10°/ 25°/ 60° / 90x120° beam angles for option.

Product Detail




Applications

It can be widely used in stadium,tunnel,square,garden,lawn,playground,tennis,golf course,bus station,airport,sculpture,architecture,street,parking lot etc.

About us


We have 8 production lines at production department, including assembling, inspection and aging test lines.

Production ability: 10-15 days for 100pcs LED flood lights and 20-25 working days for 500pcs LED flood lights at common requirements. Each Lamp must pass 24 hours aging test and high voltage (10KV) surge test before we make packing and make delivery.




Applications

It can be widely used in stadium,ski resort,square,garden,playground,tennis court,golf course,bus station,airport,seaport,parking lot etc.
