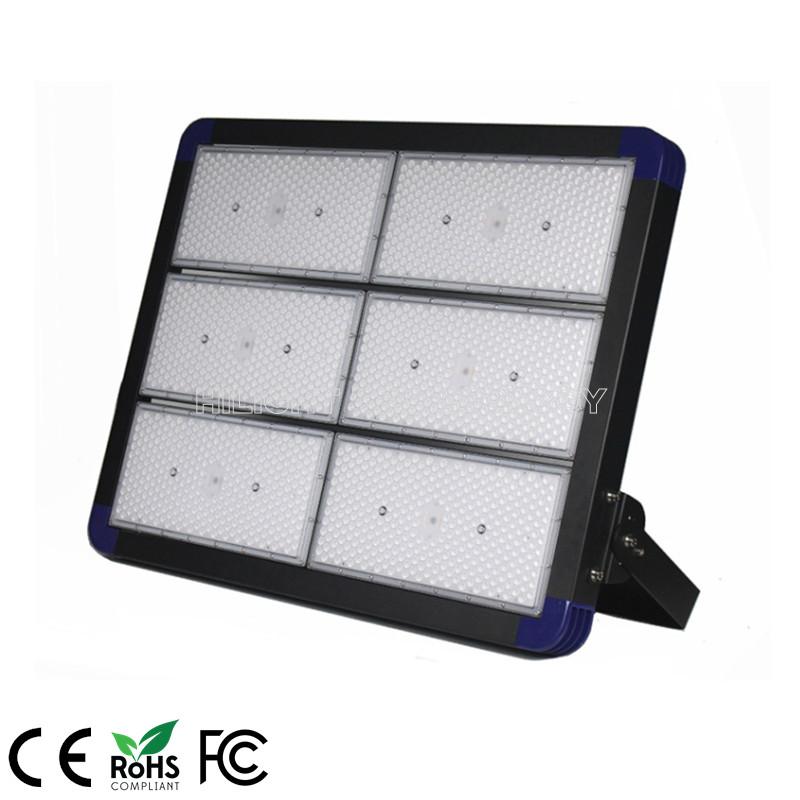

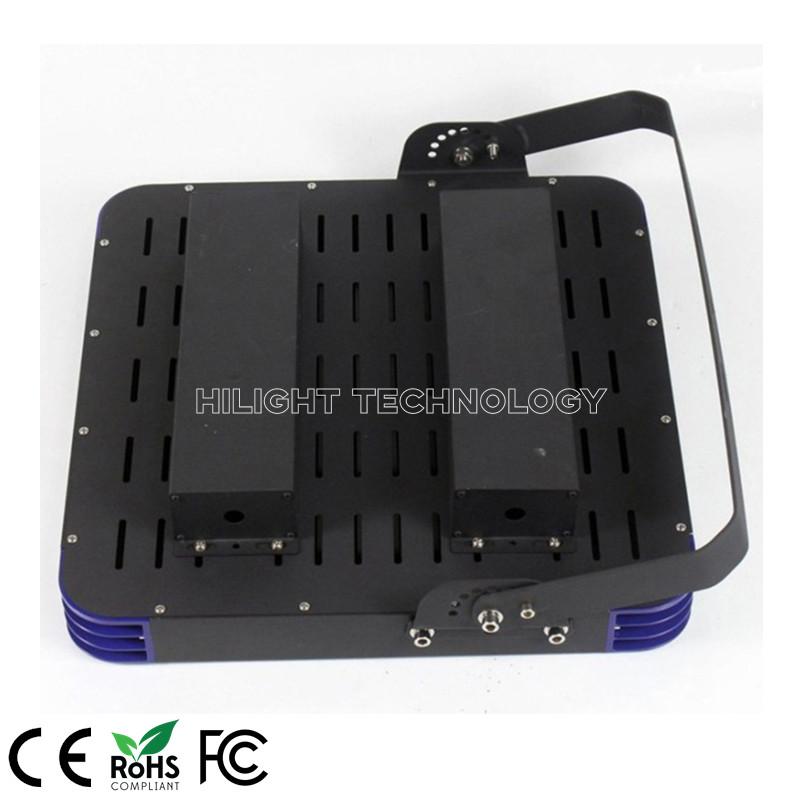

Slim design high power 1200W IP66 outdoor area LED flood light

Product Item：HL-HD1-1200W
Category：High power high mast light
Views：702
Lumens: 160LM/W
Defend grade: IP66
Materials: Aluminum
Driver: Meanwell ELG
Product Manual：1200W IP66 outdoor area LED flood light

BASIC INFO

1200W IP66 outdoor area LED flood light

The product is designed with high efficiency LED light source 160LM/W, >95% working efficiency drivers which has the characteristics of high brightness, energy saving and environmental protection, simple installation, stable and reliable operation, long service life and so on.

Main Technical data:

Model No.	HL-HD1-1200W
Power consumption	1200 Watts
Input voltage	AC90-277V / 50-60Hz

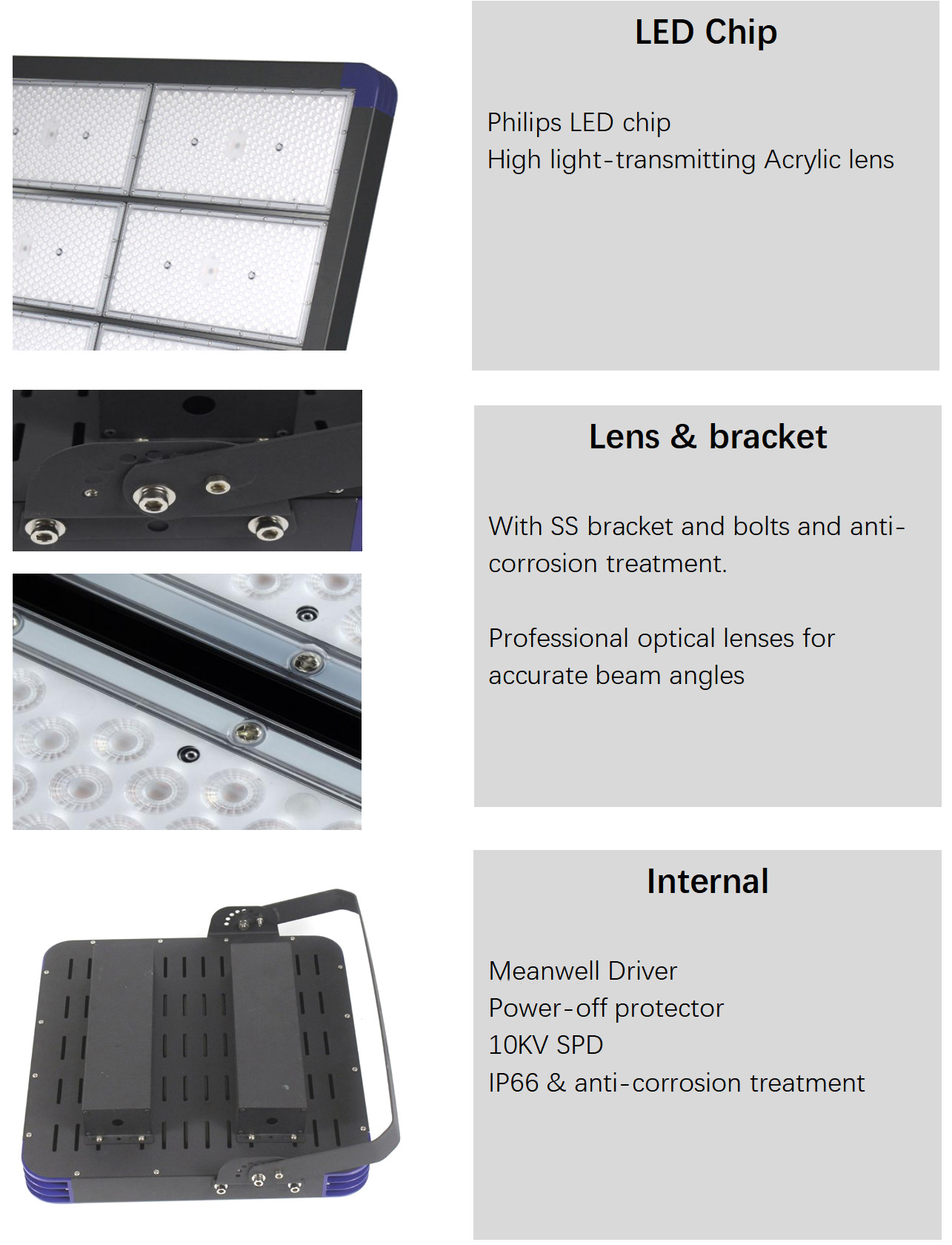

LED Chip	Philips Lumileds 3030SMD
Lumens	192,000LM @ 160LM/W
LED driver	Meanwell driver ELG series
Beam angle	25^o / 45^o / 60^o / 90^o
CRI	Ra>75
Power factor	>0.95
Color temperature	3000K - 6500K
THD	< 15 %
IP grade	IP66
Efficiency of the driver	>95%
Surge protection	>10KV
Working temperature	-25ºC ~ 50ºC
Body material	Die-casting aluminum C
Bracket material	Stainless steel
Lifetime	>80,000 hours
Lamp dimensions	797 x 846 x 100mm
Net weight	27KG

About the details:

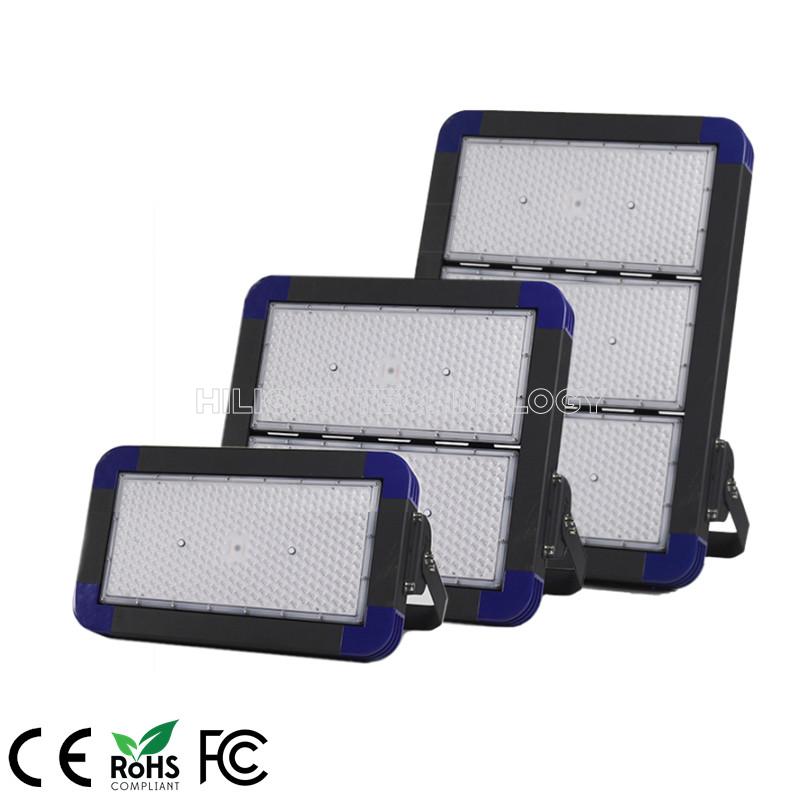

Model No.	Power	LEDs Qty	Lumens	IP grade
HL-SP12-200	200W	343 x3030SMD	32,000	IP66
HL-SP12-400	400W	686 x3030SMD	64,000	IP66
HL-SP12-600	600W	1029 x3030SMD	96,000	IP66
HL-SP12-800	800W	1372 x3030SMD	128,000	IP66
HL-SP12-1200	1200W	2058 x3030SMD	192,000	IP66
HL-SP12-1600	1600W	2744 x3030SMD	256,000	IP66
