BASIC INFO

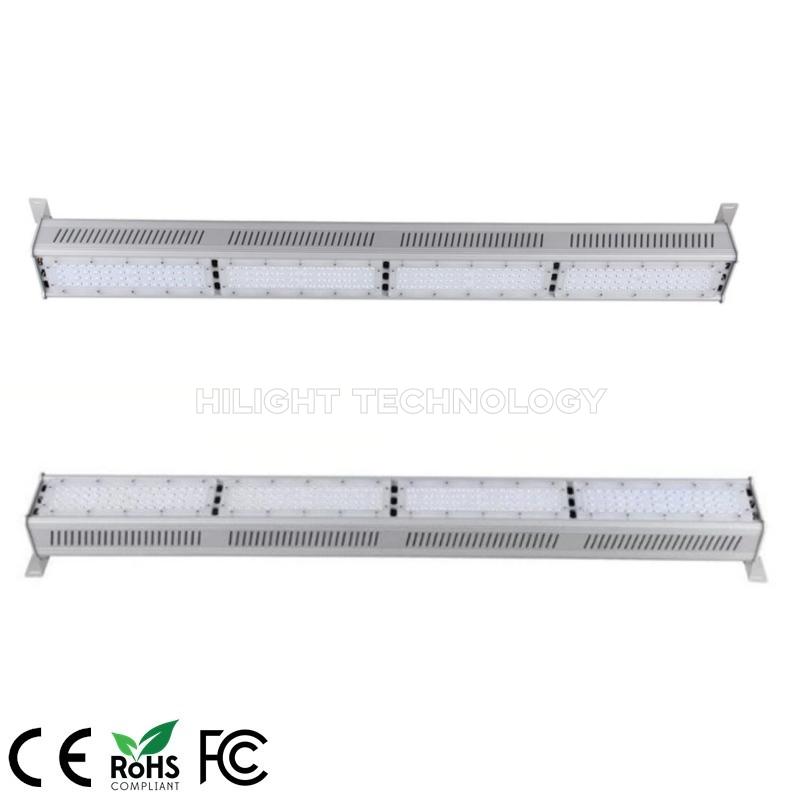

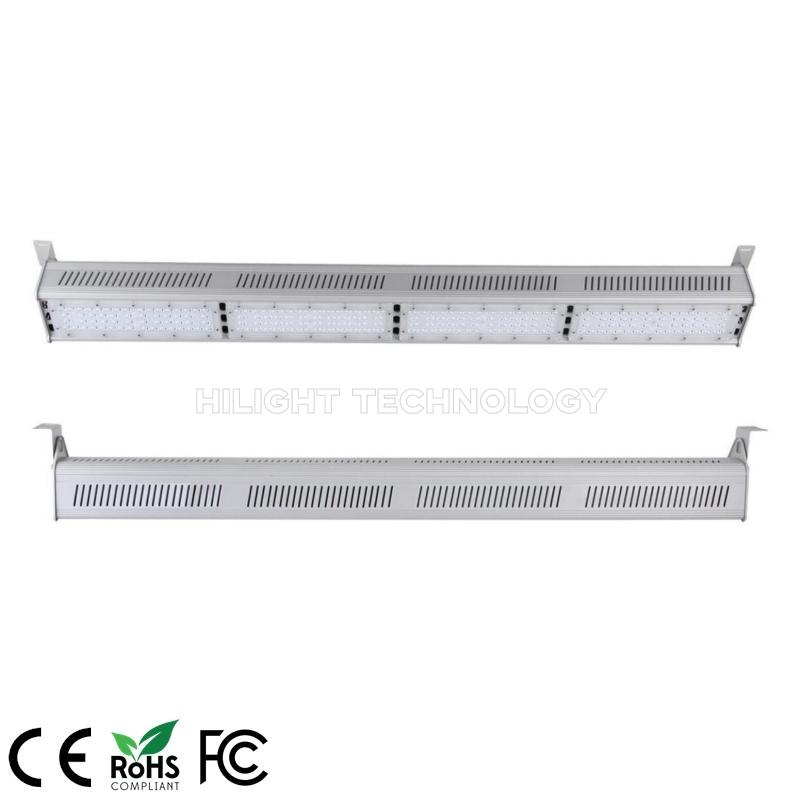

Aluminum IP65 50W 100W 200W 300W 400W 500W IP65 LED Linear Highbay Light
| Model | LB02-50W | LB02-100W | LB02-150W | LB02-200W | LB02-250W | LB02-300W | LB02-400W | LB02-500W |
| Power | 50W | 100W | 150W | 200W | 250W | 300W | 400W | 500W |
| Size(mm) | 353x115x144 | 620x115x144 | 887x115x144 | 1154x115x144 | 1421x115x144 | 948x230x173 | 1214x230x173 | 1481x230x173 |
| Input | AC100-277V / 50-60Hz | |||||||
| LED qty | 56pcs | 112pcs | 168pcs | 224pcs | 280pcs | 336pcs | 448pcs | 560pcs |
| Materials |
6063 Aluminum & optical PC lens |
|||||||
| Power supply |
SOSEN, INVENTRONICS or MEANWELL |
|||||||
| CCT |
2800-3000K / 4000-4500K / 5000-5500K / 6000- 6500K / 5700K by 3030SMD |
|||||||
| CRI | Ra80 |
Ra80 |
Ra80 |
Ra80 |
Ra80 |
Ra80 |
Ra80 |
Ra80 |
| Lumens |
130-140LM/W |
|||||||
| Beam angle |
60 / 90 / 120 / 70x30 / 90x60 / 120x60 |
|||||||
| P.F. |
0.97 |
|||||||
| Defend |
IP65 |
|||||||
| Lifetime |
50,000 hours |
|||||||
| Certificates |
CE, LVD, EMC, RoHS, PSE, FCC |
|||||||
| Packing | 1pc/carton | 1pc/carton | 1pc/carton | 1pc/carton | 1pc/carton | 1pc/carton | 1pc/carton | 1pc/carton |
| Size |
40x18x22cm |
67x18x22cm |
94x18x22cm |
120x18x22cm |
147x18x22cm |
94x30x24cm |
120x30x24cm |
147x30x24cm |
| Weight | 2.2 | 4 | 5.3 | 7 | 8.6 | 11 | 14.8 | 18 |

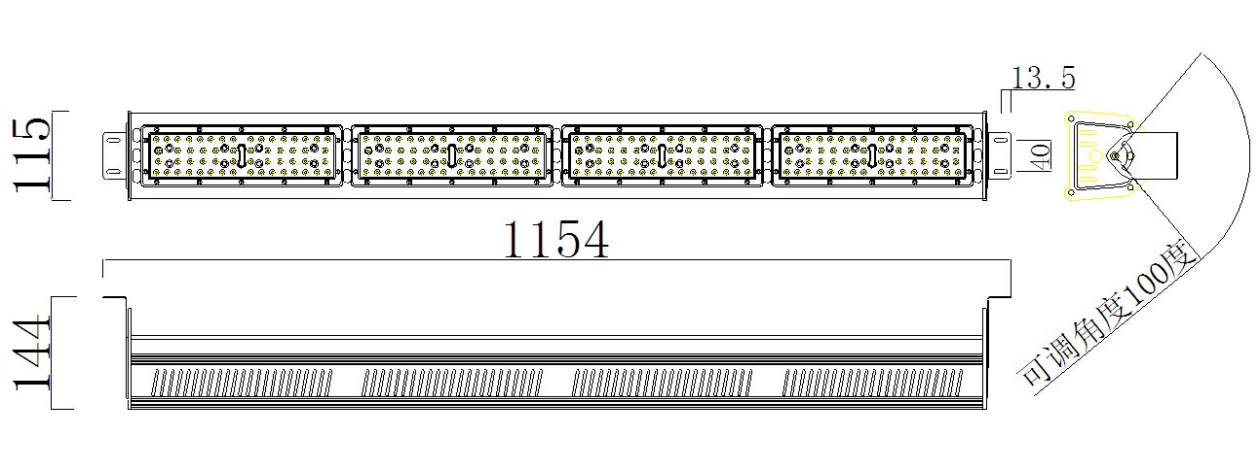

Dimensions of 200W:
Main features:
1.Adapt to harsh outdoor environment by baking powder tech,corrosion resistance
2.Integrated aluminum housing,durable heat dissipation
3.Lumileds 3030SMD,lighting efficiency>130LM/W
4.Robust power supply

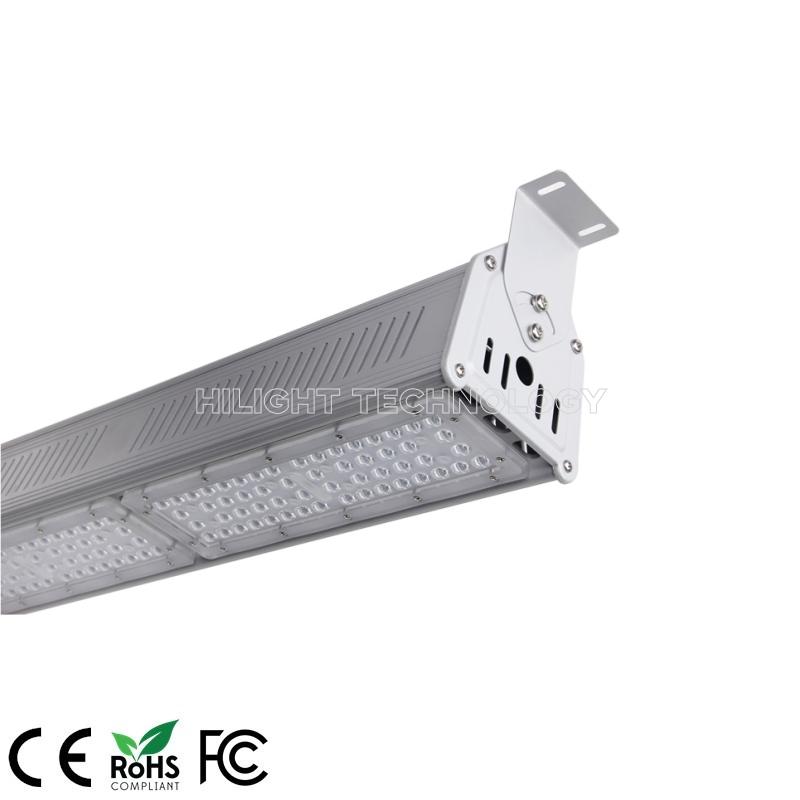

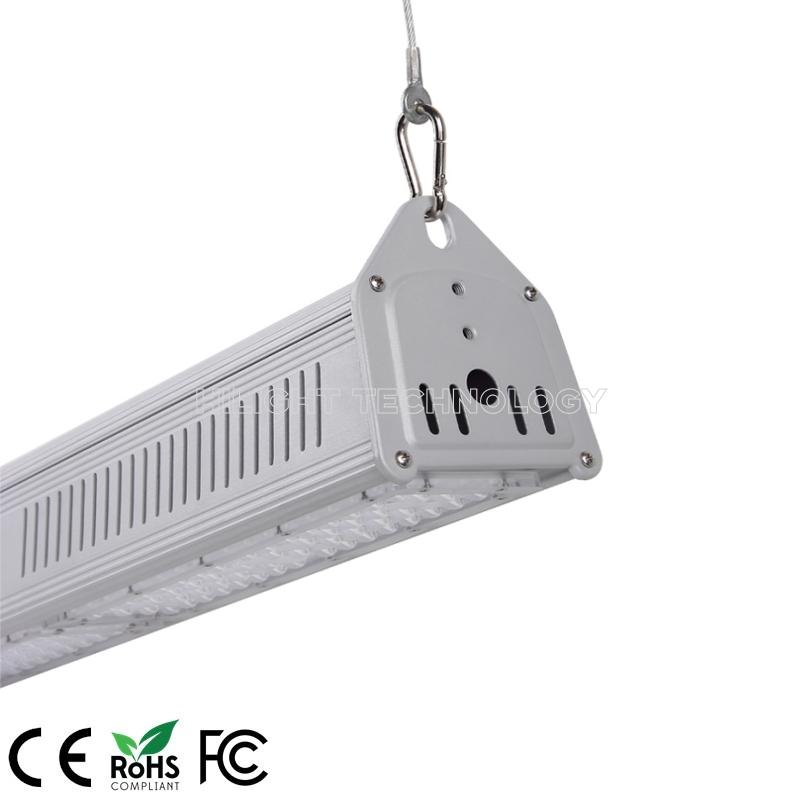

5.Hanging chains suspending, surface mounted for option.
