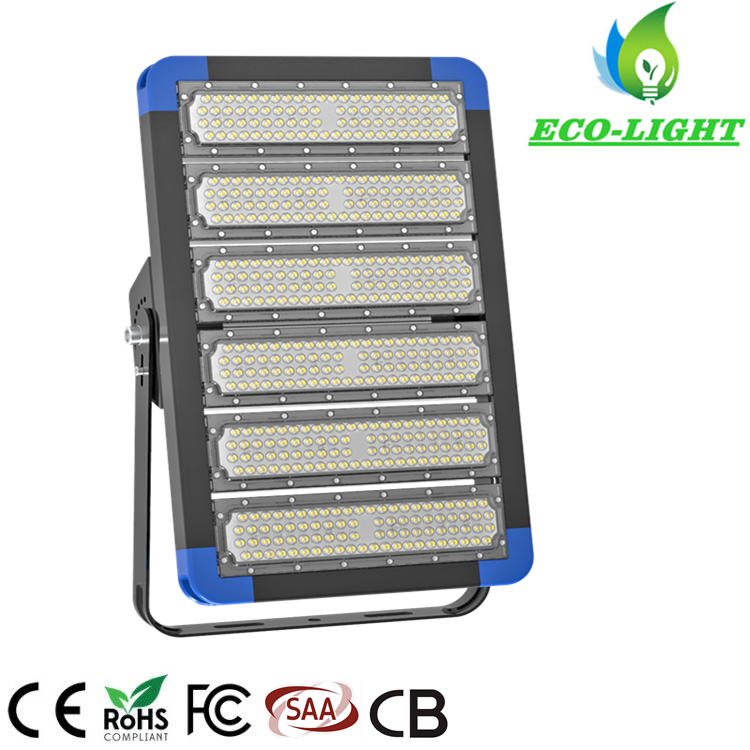

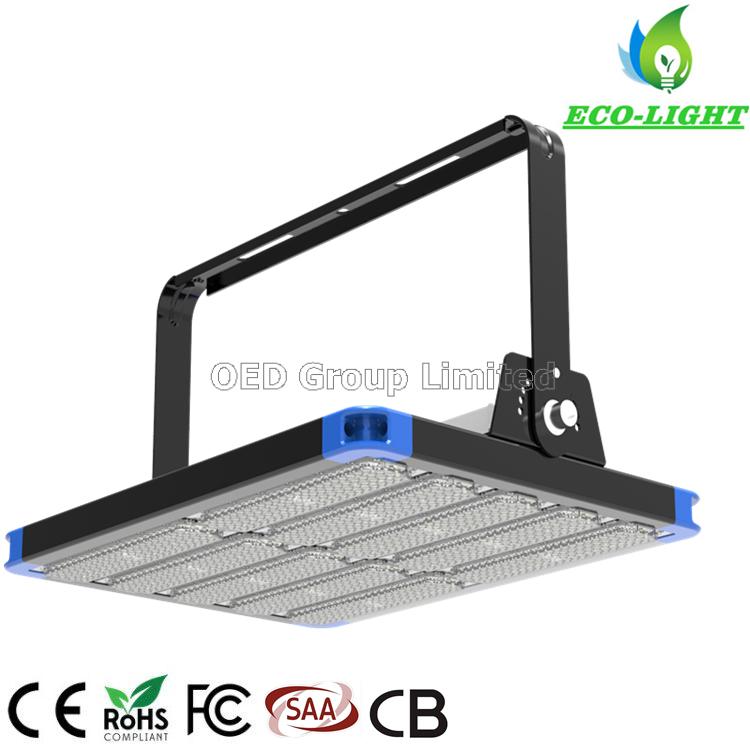

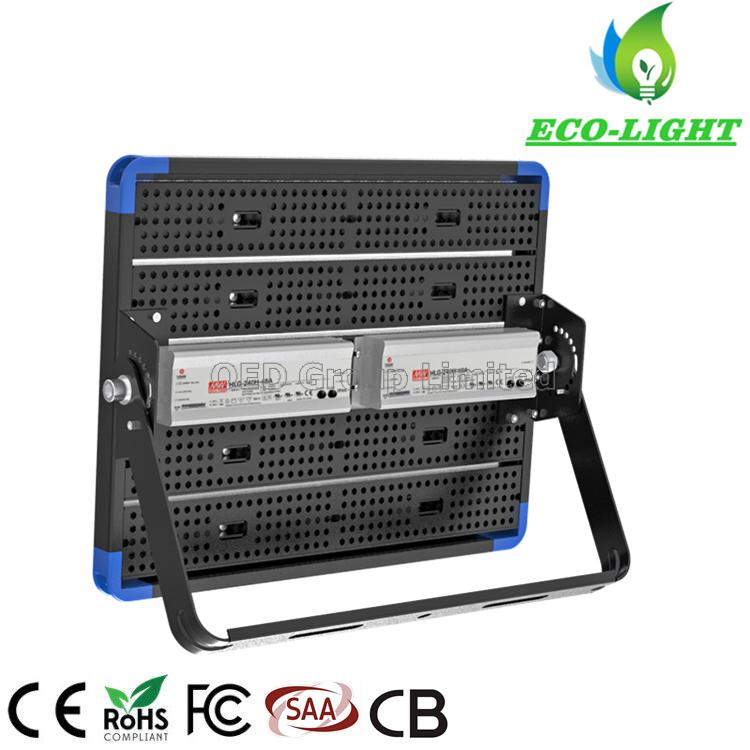

IP66 5 years warranty 500w LED module tunnel light LED flood lighting

  • Product Item:OED-YXY-S500
  • Category:Module LED Floodlight
  • Views:947
  • Tunnel LED lighting
  • 500w LED tunnel light
  • modular led tunnel lamp
  • LED tunnel light
  • Product Manual:Outdoor IP66 5 years warranty 500w LED module tunnel light LED flood lighting
BASIC INFO

Outdoor IP66 5 years warranty 500w LED module tunnel light LED flood lighting

Technical Data
Item name
IP66 500W SMD module LED Tunnel light
Power
500W
Light Source
Philips chip 3030 SMD LED
LED Qty
840 pcs
Viewing angle
15°  30°  45°  60°  90°
Color Temperature
3000-3200k,4500k,6000-6500k
CRI
Ra.80
Input Voltage
AC100-277V / 50-60HZ
Materials
6063 Aluminum
Operating Temp.
-25℃ ~ +50℃
Applications
Outdoor lighting,Tunnel lighting,Stadium,Square,factory etc.
Item N.W.
12KG
Item G.W.
13.5KG
Qty / CTN
1PC
Lamp dimensions
L571 x W107 x H461mm
Carton size / G.W.
62 x 16 x 50cm
Certificates
TUV,CE,ROHS,ETL,EMC,LVD,SAA,CB,ISO9001
Lifetime
50,000 hours
Warranty
5 years
Product manual

1.Using high-quality LED as the light source, energy saving and environmental protection, compared with traditional light source, energy saving is more than 60%.

2.Long life, can be used for more than 5 years under normal circumstances.

3.The light is even and soft, and the brightness is high. The color rendering is good, the color of the real object is more realistic, and various light colors are available to meet the needs of different environments.

4.Quick start, no flicker, no noise, no radio frequency interference.

5.Using high efficiency constant current driver, wide voltage input, can work in places with unstable voltage.

6.Lightning protection, the lamp body is made of aluminum alloy material, high strength, corrosion resistance and weather resistance, good heat dissipation.

7.Green and environmentally friendly, using lead-free and mercury-free process.

Product Details
Application

It can be widely used in Tunnels,Square,Plaza,Garden,Lawn,Playground,Tennis Stadium,Golf Course,Bus Station,Airport,Sculpture,Architecture,Arts Work,Street,Factory offices,Show Room,Work Shop,Parking Lot etc.

Contact us
Certificate
About us

We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 3-5 days for 500pcs LED Tunnel flood light, and 10-15 working days for 3000pcs LED Tunnel flood Light at common requirements.
