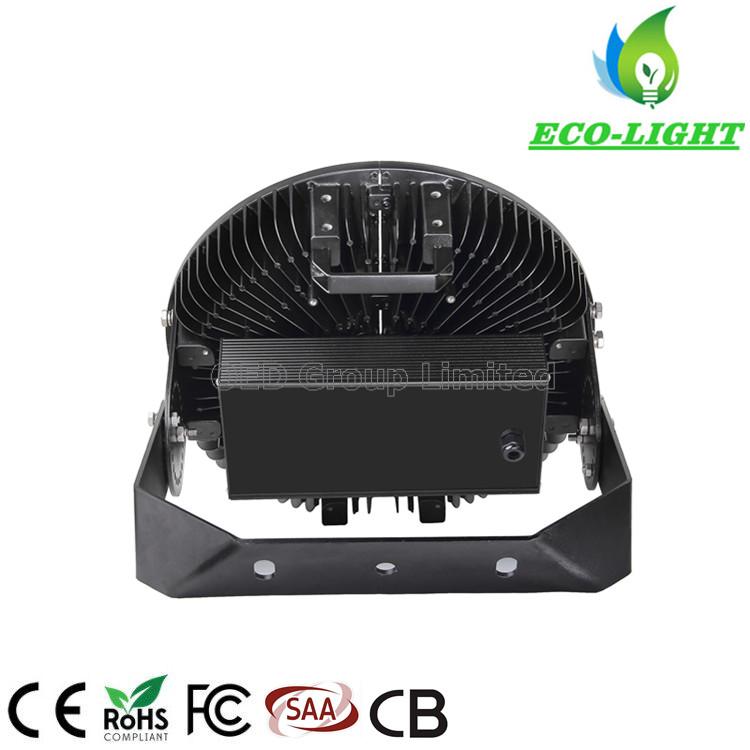

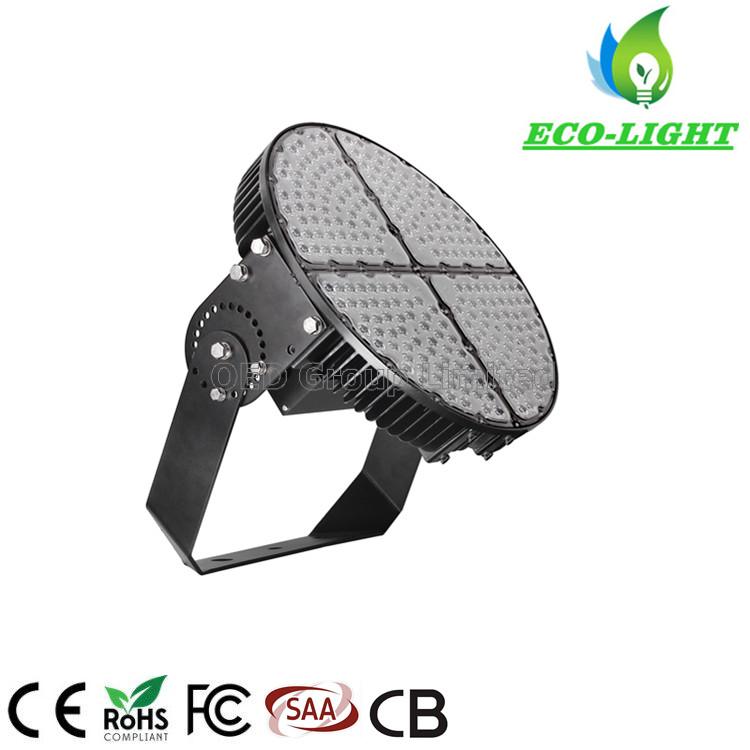

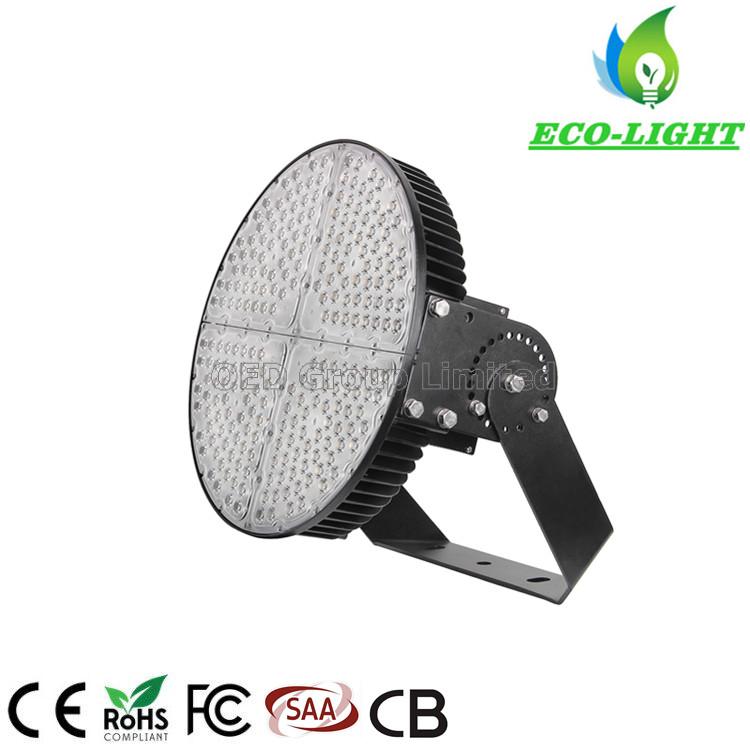

CE RoHS IP66 600W LED floodlights for outdoor area

Technical data:

Product manual:
1.LED floodlight 600W adopts Lumileds 5050SMD, energy saving and environmental protection, high brightness and long life.
2. Using die-casting pure aluminum materials, the surface is subjected to special oxidation treatment and heat conduction treatment to improve the heat generated by the lamp board and the power source of the lamp, which can be quickly exported to the outside the lamp, life expectancy 50,000 hours
3. Constant current supply, high efficiency, low heat, high constant current accuracy
4. Unique structure, high efficiency and energy saving, green and environmental protection.

IP66 600W LED Flood Light Dimensions:

Features:
1. Aluminum material, the light with narrow beam angle can be more focused and goes more far away.
2. Waterproof IP66 rating is applicable to outdoor.
3. Professional accurate optical lens 20 / 40 / 60 beam angles for option.
4. Lumileds 5050 chips, superior lumen efficiency reachs 160 LM/W & 50,000hours lifespan.
5. Every unit independent heat sink design increase air contact and area, which makes better ventilstion and heat dissipation.
6. With 10KV surge protection device, and wide input voltage AC85-305V, offering superior performance and reliability.
7.Driver cover,protect drivers and make better in heat-dissipation.

Application:
Applicable to Port and Harbour,Factories,Production plants and others such as football stadium etc.

Installation instructions:
1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.

Our workshop:
We have 8 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 10-15 days for 50pcs LED stadium light, and 20-25 working days for 500pcs LED stadium Light at common requirements.

Packing & Aging test :
Each Lamp must pass 24 hours aging test and high voltage surge test before we make packing and make delivery.

Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.  5000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 8 production lines meet your shipping requirement;
5. Export port Shenzhen or Guangzhou;
6. Discount available for bulk order;
7. High quality components and materials depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
L/C, western union, Alipay etc.
NO O/A.

Delivery time:
Samples and less than 50pcs in 10-15 working days;
200pcs in 17-18 working days;
500pcs in 20-25 working days.

About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.

FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it be received after we confirm the order by payment?

Samples 50pcs 5-10 days.

<
