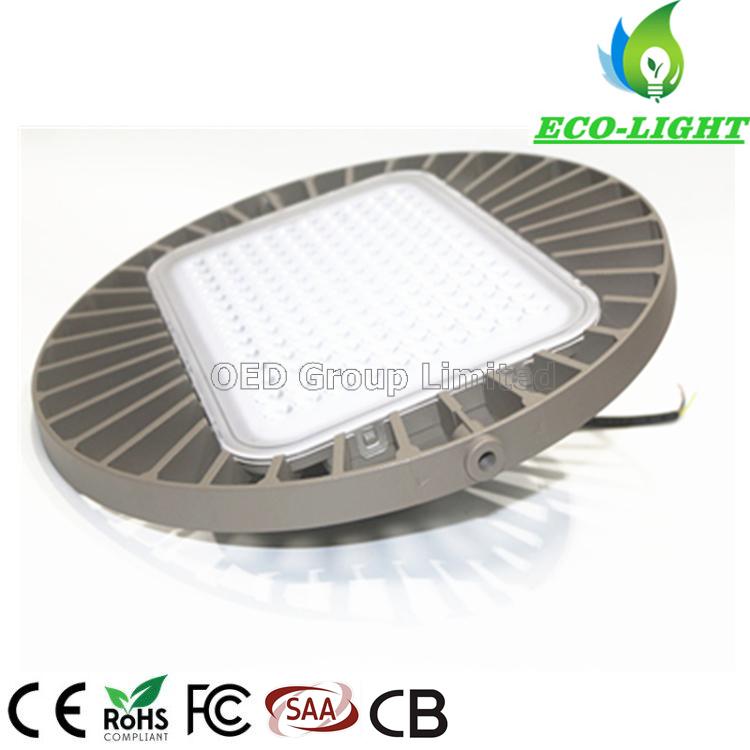

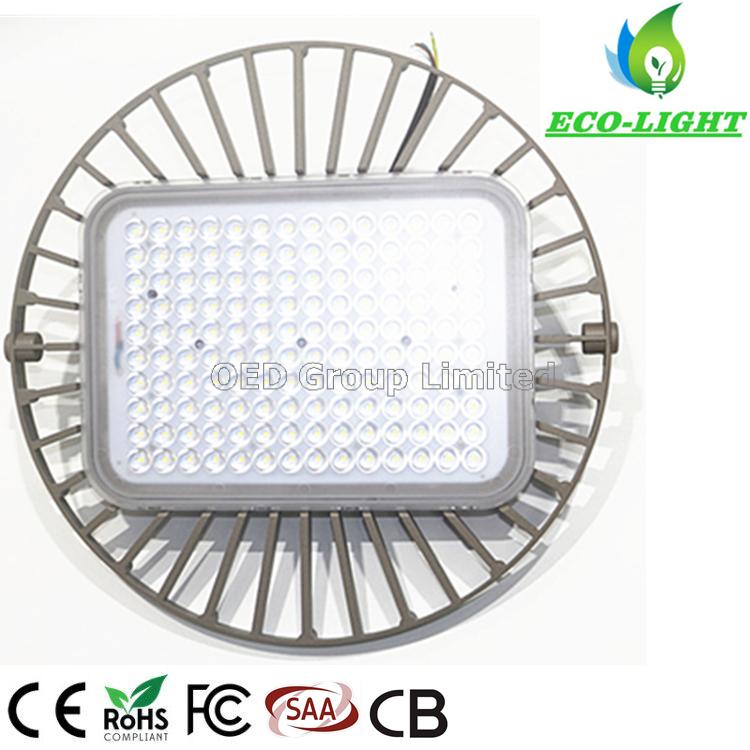

High lumens Aluminum material UFO 240W LED high bay stadium light 30,000 lumen

Product Item：OED-HD240D
Category：UFO LED Highbay Light
Views：1077
240W LED high bay light
ufo led high bay light
LED high bay light 30000 lumen
ufo led high bay light 240w
Product Manual：High lumens Aluminum material UFO 240W LED high bay stadium light 30,000 lumen

BASIC INFO

Technical Data

Item name	240W LED UFO high bay stadium light
Power	240W
Light Source	Bridgelux 3030 Chip
LED Qty	252 pcs
Input Voltage	AC 85~265V 50/60Hz
Color Temperature	2700-6500K
Light effect	130LM/W
Lumen	31,200LM
PF	≥0.90
CRI	Ra.≥80
IP	65
Viewing angle	60° / 90°
Materials	Die-Casting Alu.+PC
Operating Temp.	-25ºC to +50ºC
Applications	Factory, Tunnels, Square, Plaza, Garden, Lawn, etc.
Qty / CTN	1PC
N.W.	7.3KG
G.W.	7.9KG
Lamp dimensions	450 x 100 mm
Carton size	55 x 55 x 17 cm
Lifetime	50,000 hours
Quality warranty	5 years
Certificates	CE,ROHS, EMC, LVD, ISO9001

Product Feature

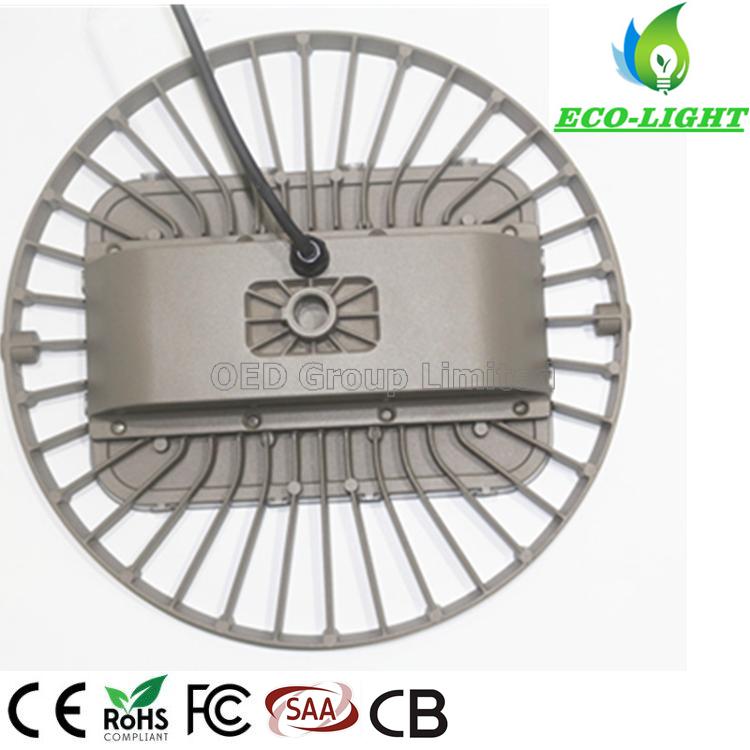

1. The radiator is Die-casting aluminum, anodic oxidation treatment, with PC cover, anti-corrosion, no dust, no static electricity.

2. AC85-265V Meanwell brand power supply with constant current supply. PF.>0.9.

3. Direct lighting design, 60 / 90 angles option.

4. Gold wire & copper fixture LED, Bridgelux LED Chip with 130LM/W, high luminous efficiency, low light drop and high energy-saving efficiency.

5. High thermal conductivity aluminum base board and radiator, low temperature rise, good heat dissipation, lifetime is more guaranteed.

6. Whole lamp with 5 years warranty of quality assurance.

7. Assembly line work, large-scale production, stable product performance, and better quality guarantee.

Product Details

Application

Factories, stadium, Logistics center, Exhibition Center, landscape lighting, landmarks lighting, Airport, Deck, billboards, buildings, parking and other needs of long-range floodlight outdoor or indoor lighting.
