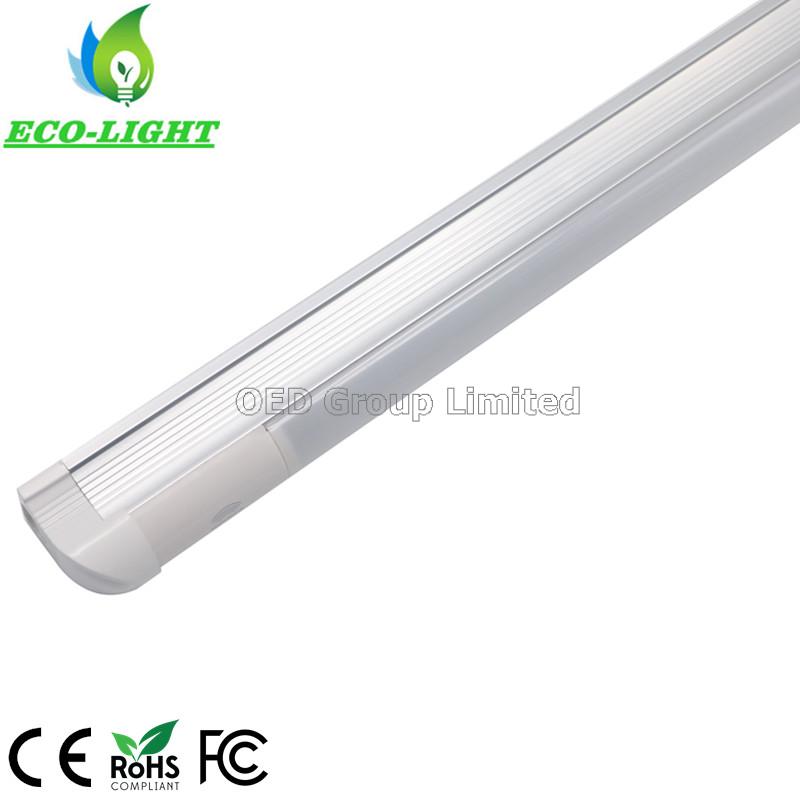

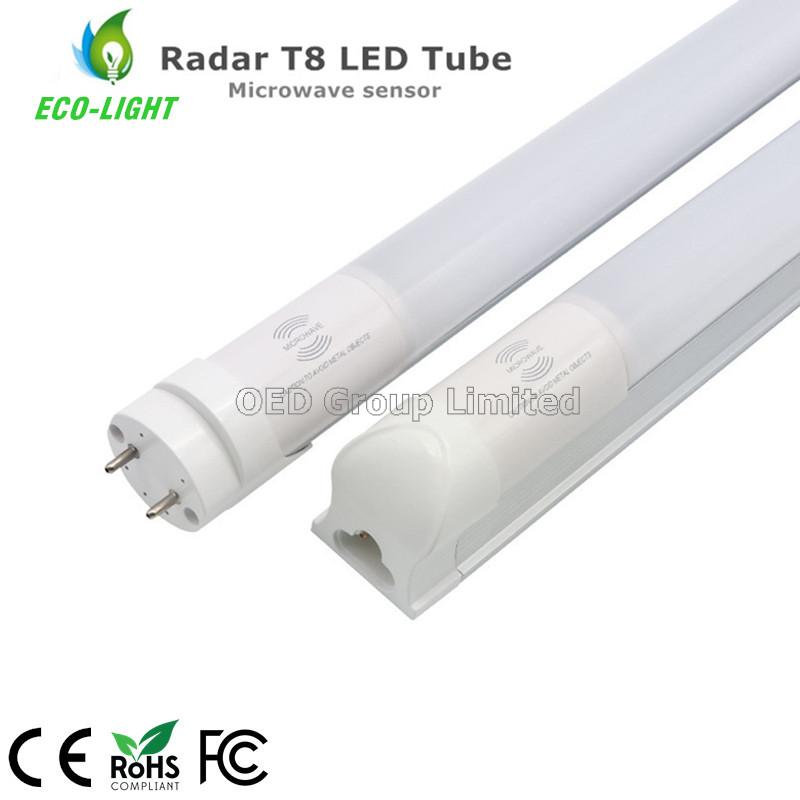

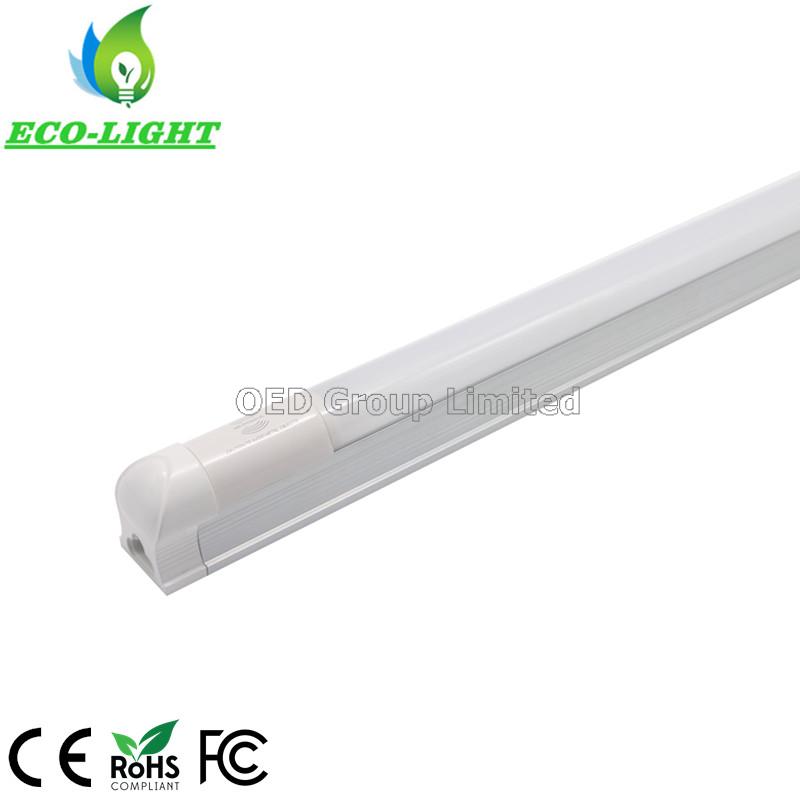

China factory 3 years warranty t8 led tube lamp microwave sensor led motion sensor light for stairs
PIR sensor / Radar sensor T8 Tube single tube or tube with fixture
25W @ 5FT, 18W @ 4ft, 13W @ 3ft, 9W @2ft, 5W @ 1ft
AC85-265V / 50-60Hz
Aluminum and Plastic cover
IC intelligent constant current driver
3 years warranty
Main Technical data:
Item Number | OED-T8P-13W |
Input voltage | AC85-265V / 50-60Hz |
Power consumption | 13W |
Sensing distance | Radar sensor:8-10m; PIR sensor:3-5m |
Sensing mode | full on & full off ; full on & 30% on for option |
Power factor | PF.>0.9 |
CCT | WW 2700-300K, NW 4000-4500K, CW 6000-6500K |
Luminous flux | 100-110LM/W |
LED Type | 72pcs 2835SMD, Epistar Chip |
CRI | > 80Ra. |
Beam angle | 140 deg. |
Main materials | 6063 Aluminum and PC |
Working temperature | -20 to +50 celsius degree |
Lifetime | 40,000 hours |
Quality warranty | 3 years |
Certificates | CE, LVD, EMC, RoHS, ISO9001 |
Product Features:
1. Thicker aluminum radiator, insure better heat management.
2. Clear or frosted Plastic cover, high transmittance and flexible for safe deliver.
3. Constant current IC driver, AC85-265V / 50-60Hz.
4. Epistar LED chip, 2835SMD with 120-130LM/W, LM-80.
5. Energy Savings, saving 60% more energy compare with traditional light source.
6. Long Lasting, more than 40,000 Hours Working Lifetime.
7. Eco-Friendly,No any harmful radiate spectrums such as UV or infrared ray included.
8. CE, LVD, EMC, RoHS listed.
Applications:
Underground garage, parking lot, household, shool, hospital, office, workshop, supermarket, Outdoor Adevertisement Light Box, etc.
Note:
1. Keep power off before installing.
2. Remove the ballast and starter of former fluorescent tubes.

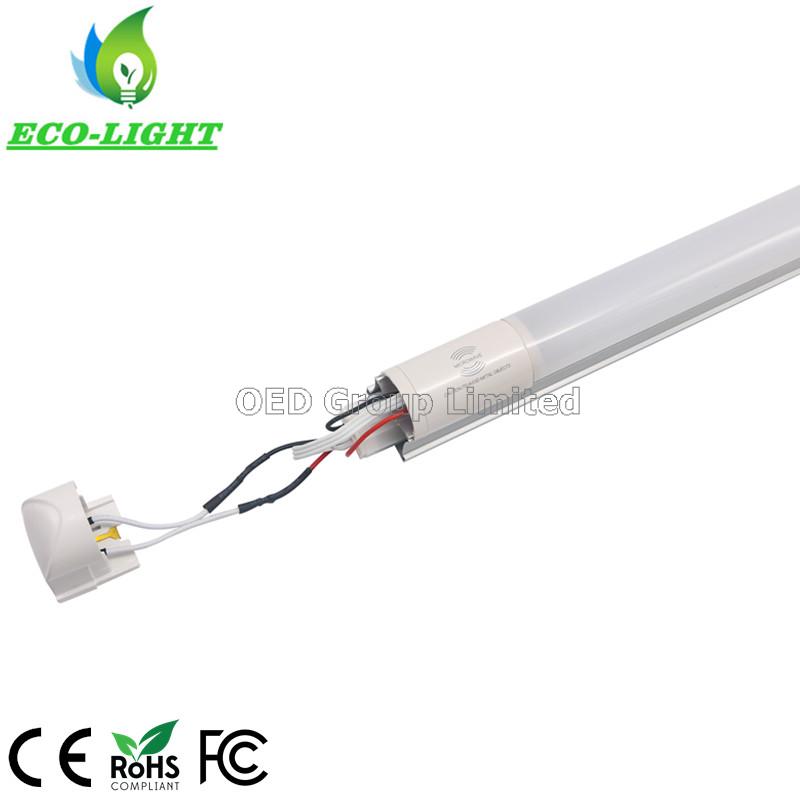

3. Put the LED tube into the fixture, see picture here.
4. Turn on the power and installation finished.
Packaging & Delivery:
Delivery Detail: 3-5 days for sample order, 12-15 working days for 3000pcs.
Packaging Detail: Round paper tube or gift inner box each lamp, lamp and box can be with your label.
Single tube 30pcs & fixture tube 36 pcs/ export carton. Size: 96 x 23x 23CM, G.W. 8.5KG / 10KG.
Our Service:
1.Reply your inquiry in 24 working hours.
2.Customized design is available, support OEM and ODM.
3.Offer the lowest price with high quality LED light speedly.
5.Payments: T/T, Westtern Union & Paypal. Big order 30% in advance acceptable.
6.Lead time: 3-5 working days for samples, 12-15 working days for 3000pcs.
7.Warranty time: 3years. We provide free repairing service for any defectives during warranty period. And will offer a new replacement with the next order if the item can't be repaired.
Aging test:
Each LED Tube must pass min. 24 hours aging test before packing and delivery.
Aging test:
Each LED Tube must pass min. 24 hours aging test before packing and delivery.
Shipping:
Express: Fed Ex / UPS / TNT/ DHL/ Aramax / Epacket / Dubai Airline/ Aus. Airline etc.
By Sea to your nearest seaport / By Air to your nearest Airport.
FAQ:
1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.
2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.
3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs sensor T8 LED tubes.
4. What about your after-sales servie and warranty policy?
We offer 3 years warranty for this Motion sensor T8 LED tubes, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
