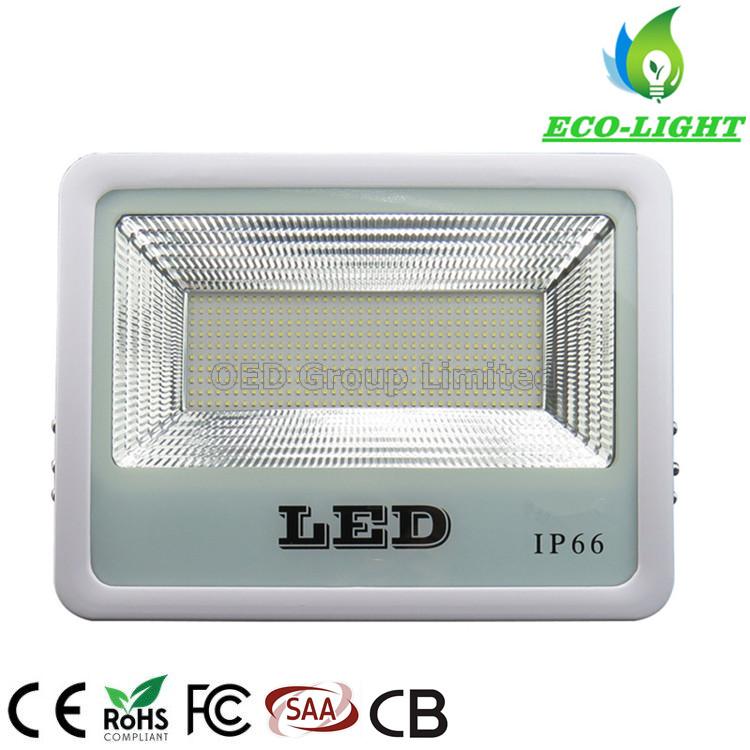

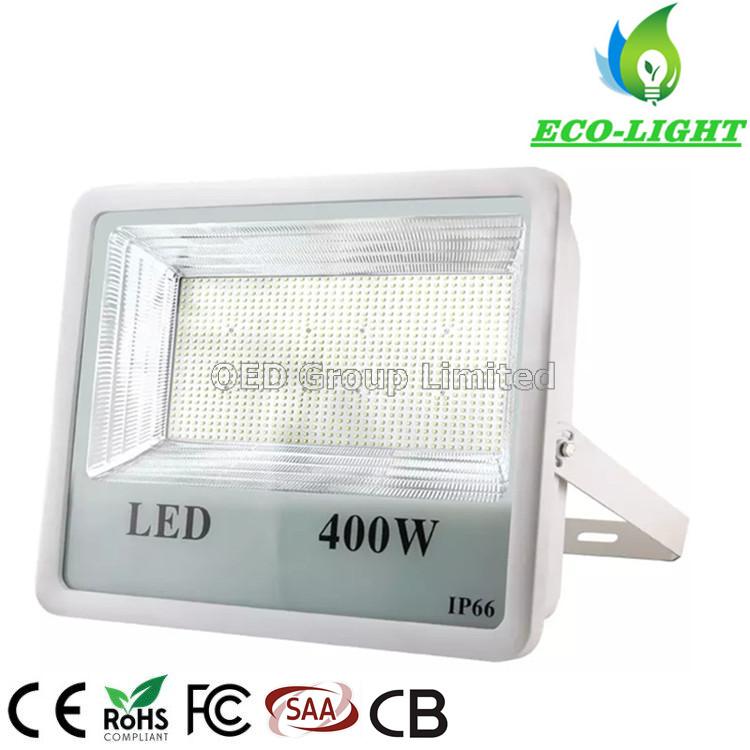

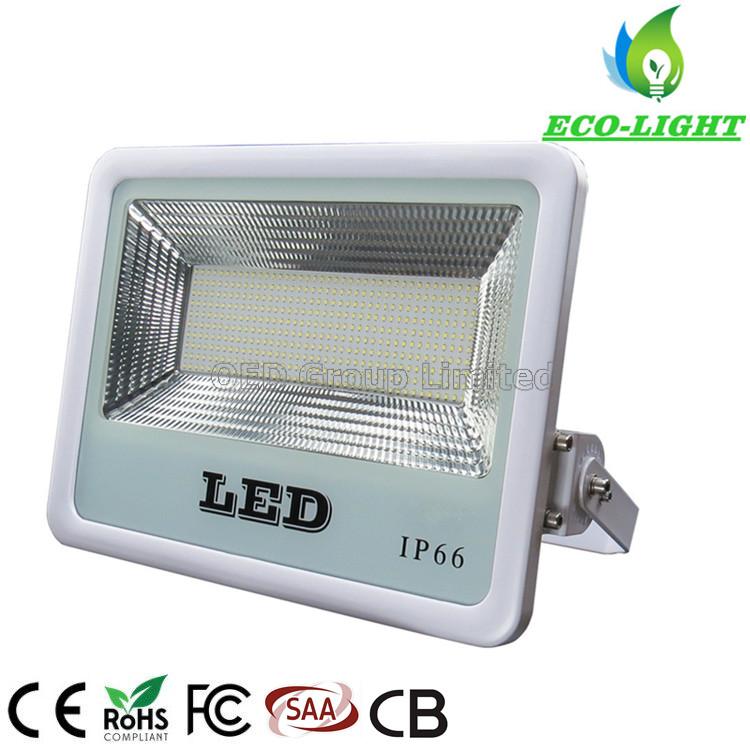

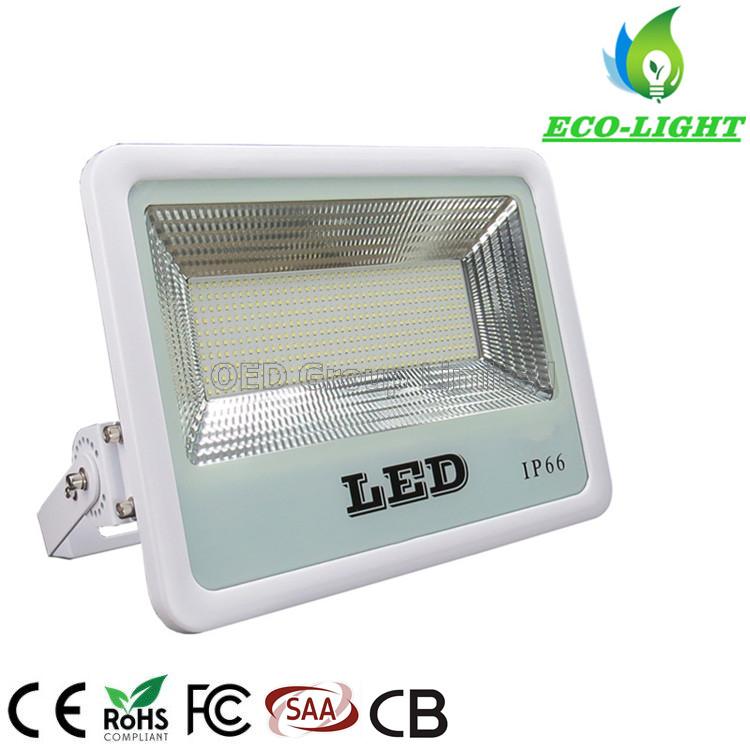

400W IP66 extrior building lights SMD LED flood light

Luohe Hilight Technology Co.,ltd.

Luohe Hilight Technology Co.,ltd.

400W IP66 extrior building lights SMD LED flood light

  • Product Item:OED-NB-400W
  • Category:LED Floodlight
  • Views:1263
  • 400W SMD flood light
  • LED exterior building lights
  • building lights
  • 400w flood light
  • Product Manual:400W IP66 extrior building lights SMD LED flood light
BASIC INFO

Technical Data

Item name
IP66 400W LED SMD flood light
Power
400W
Light Source
Epistar SMD2835
LED Quantity
960PCS
Input Voltage
AC85-265V 50/60Hz
Color Temperature
3000K / 4200K / 6000K
Light effect
110LM/W
Lumen
44,000LM
PF
≥0.90
CRI
Ra.≥80
IP
65
Viewing angle
120°
Materials
Die-casting Aluminum
Operating Temp.
-25ºC to +55ºC
Applications
Balcony, courtyard, billboard, garden, park, stadium, etc.
Qty / CTN
1PC
G.W.
7.6KG
Lamp dimensions
565 x 382 x 95mm
Carton size
61 x 43 x 14 cm
Lifetime
50,000 hours
Quality warranty
3 years
Certificates
CE,ROHS, EMC, LVD, ISO9001

Product Feature

1.The lamp body is sealed with tempered glass and waterproof silicone, and the internal epoxy resin is potted. Therefore, the lamp has double waterproof function and excellent waterproof effect,the protection level of the lamp is: IP66.

2. The light source of the lamp adopts imported high lumen high power LED chip, built-in constant current power supply, voltage AC85-265V to ensure the stability of the lamp.

3. The effective projection distance of the lamps is more than 10-200 meters, which is especially suitable for landscape buildings, outdoor squares, building walls and display products.

Product Details



Applications

LED flood light can be used in: outdoor landscape lighting, single building, historical building group exterior wall lighting, building exterior lighting, indoor partial lighting, green landscape lighting, billboard lighting, medical culture and other special facilities lighting, bars Entertainment atmospheres etc.


Installation Notes

1. Non-specialist electricians please do not repair or modify this product without authorization;

2. Please turn off the power before installation;

3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;

4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;

5. Pay attention to shock protection during installation and transportation;

6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;

7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.

8. If the lamp body or wire is damaged, please stop using it immediately.

About us

We have 6 production lines at production department, including assembling, inspection and aging test lines.
Production ability: 3-5 days for 500pcs LED Floodlight, and 10-15 working days for 3000pcs LED Floodlight at common requirements.

Our Services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3. 5,000,000 pcs light source annual production capacity, the products export to EU market, American market, Russia, Kazakhstan, Australia, South Africa, Zimbabwe, Vietnam, etc;
4. Good OEM & ODM business ability, 6 production lines meet your shipping requirement;
5. Export port Shenzhen, Hongkong or Shanghai;
6. Discount available for bulk order;
7. High quality component and material,Filips, Bridgelux, 3030SMD, 5050SMD, Epistar LED chips, MW / Sosen / HT/ TUV SAA CE listed driver etc, depend on your needs.

Payment Terms:
TT Bank Transfer, support 30% deposit and 70% before delivery;
PayPal, western union, Alipay etc.
NO O/A.

Delivery time:
Samples and less than 100pcs in 3-5 working days;
500pcs in 7-8 working days;
3000pcs in 15 working days.

About Shipping:
Samples sent by DHL, TNT, Fed EX, UPS, SF Express, Aramex etc. Door to door, you may pay customs tax depends on your customs policy.
By air or by sea for bulky orders available.


FAQ

1. Are you factory supplier?
Yes, we are manufacturer of LED lamps since 2008 and we have our own factory, supply duable super quality items and reliable after-sale service.

2. Do you supply OEM or ODM?
Yes, we can supply OEM and ODM serice with favorable price and we have our own mould workshop, your brand and logo can be printed on the items.

3. How long will it spend for our orders to be sent out?
It takes 3-5 days for samples at common requirements, and 10-15 days for big order such as 3000pcs IP66 LED Flood light.

4. What about your after-sales servie and warranty policy?
We offer 3 years warranty with different price for this flood light, by supplying you the lamp parts or new replacements for free during the warranty period for any non-human defective lamps.
