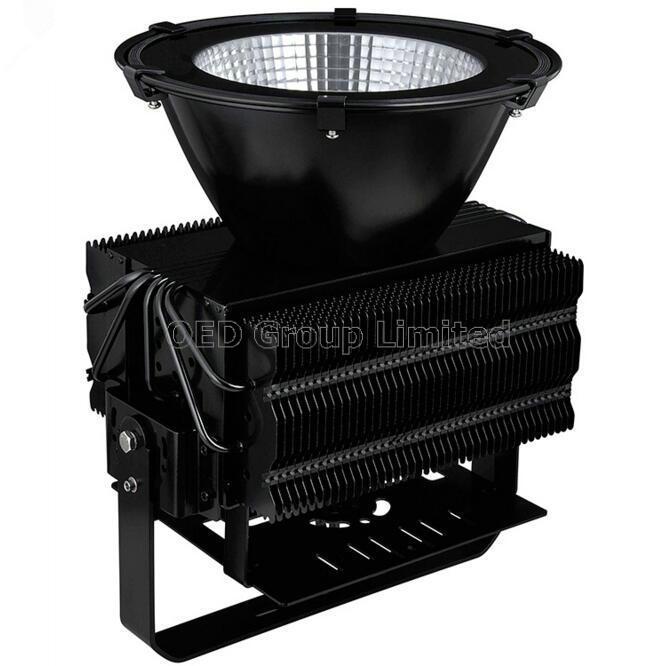

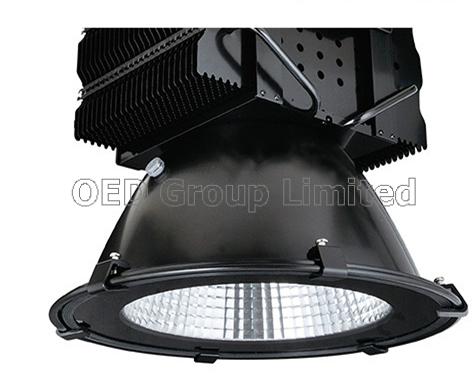

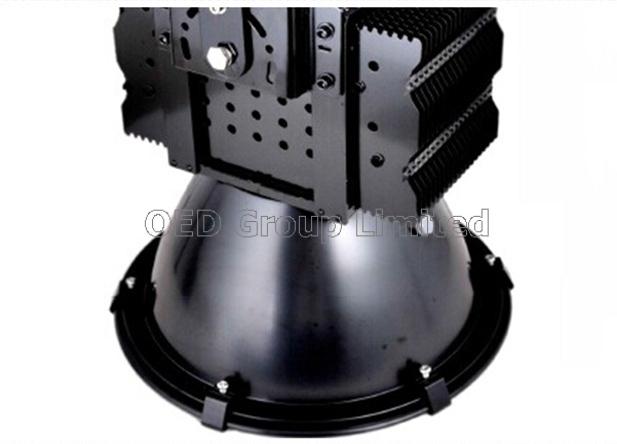

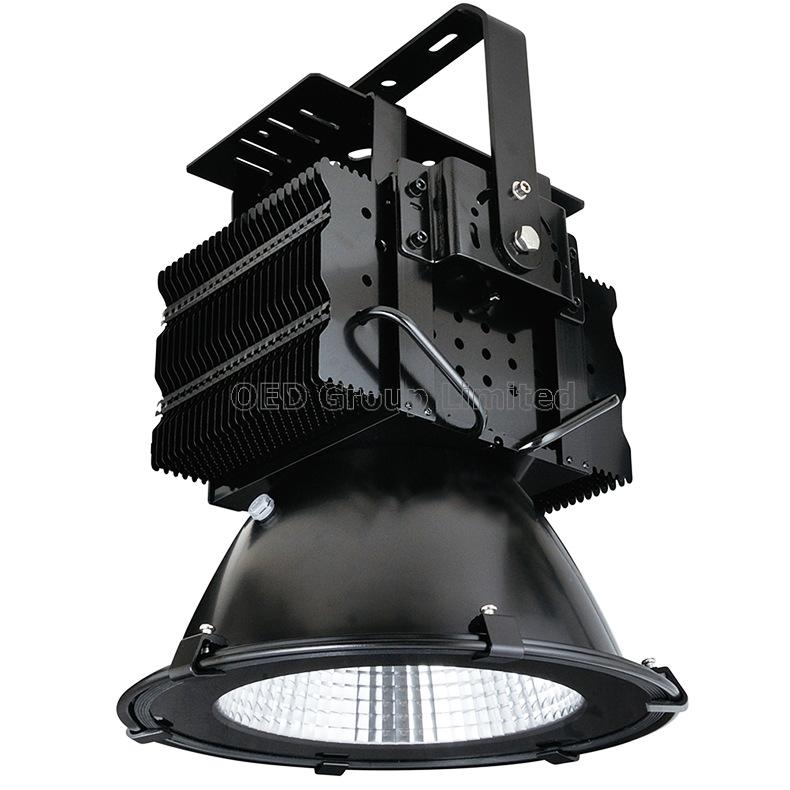

1000W LED Industrial Light 130LM/W IP65 with MEANWELL Driver and CREE LED Chip

  • Product Item:OED-HB2-1000W
  • Category:LED Projector
  • Views:1523
  • Industrial Light
  • outdoor lighting
  • Philips highbay
  • led Industrial Light
  • Product Manual:1000W LED Industrial Light 130LM/W IP65 with MEANWELL Driver and CREE LED Chip
BASIC INFO

1000W LED Industrial Light IP65 130LM/W with MEANWELL Driver and CREE LED Chip

Main parameters:

Watts: 1000W
LED Type: CREE XTE LED Chip x 504PCS
Dimensions: 460*412*507mm
Beam angle: 30° / 60° / 90°
Power factor (PF):  0.95
CRI. >80Ra
Powers available: 150W - 1500W
Input voltage: AC85-305V, 50-60Hz
Diver efficiency: >85%
Harmonic distortion (thd): < 10%
LED efficiency: 130 LM/W
Initial LED lumen: 130,000LM


Related color temperature(cct):
Cool white: 6000- 6500K, pure white: 4000-4500K, warm white: 2700 - 3000K
Other available color: Red, yellow, blue, green, amber, RGB
Distribution of the light: LED+ secondary distribution of the light reflector
The curve of light distribution: Symmetric expression/circular glare


Protected grade: IP65
Working temperature: -20 ~ 50º C
Working humidity: -10 ~ 90%rh
Storage temperature: -25 ~65º C
Materials: Aluminum+super thoughed PC cap with high efficiency transmittance
Lifespan: > 50, 000 hours


Application:
Tunnel, Sports field, workshop, warehouse, toll station, gas station, supermarket, gym, exhibition hall, public lighting places


Products advantages:
1. Philips LED Chip & Meanwell Driver with 5 years warranty.
2. Good heat dissipation, large & better heat dissipation design.
3. High purity aluminum with Fins reflector with high reflecting efficiency.
4. New high efficiency constant current driver, wide range of input voltage.
5. Energy-saving, environmental-friendly and long lifespan of 50, 000hours.
6. Convenient for installation, environmental protecting, almost free-maintenance.
